IDC-63RS - Datasheet
MBA
Category Information

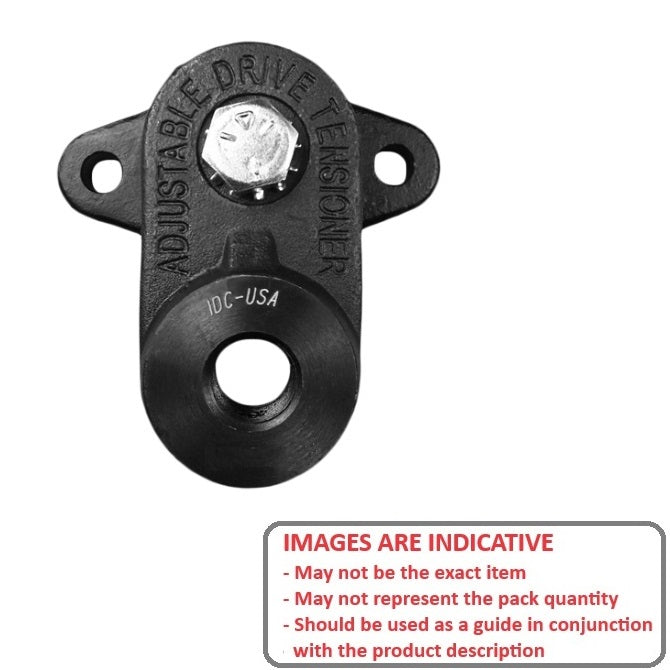

Tensioner - Drive - Adjustable Angle - FlangedFlanged Adjustable Angle Drive Tensioner. Use with idler shafts and idler pulleys. With flanged base that can be mounted in a tight area.
- Idler shaft and pulleys not included with tensioner
- Rotating arm gives operator 360o controlled tensioning.
- Serrated teeth to prevent slippage once tightened.

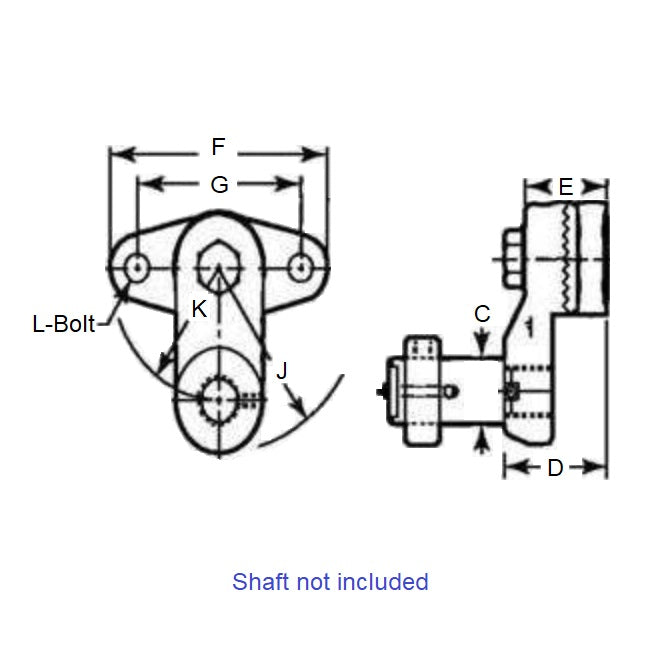

Product Data
- Bore (C)
:
25.400
mm
(Equiv. 1 in.) - Overall Width (D)
47.625
mm
(Equiv. 1.875 in.) - Mount Thickness (E)
38.100
mm
(Equiv. 1.5 in.) - Overall Length (F) 101.600 mm
- Centre Bolts (G) 76.200 mm
- Centre of Mount to End (J) 76.200 mm
- Centre of Mount to Bore (K) 50.800 mm
- Bolt Size (L) 3/4-16 x 9.53
- Approx Weight 1.30 Kg
