SLH-2540-4445-12700-H - Datasheet
MBA
Category Information

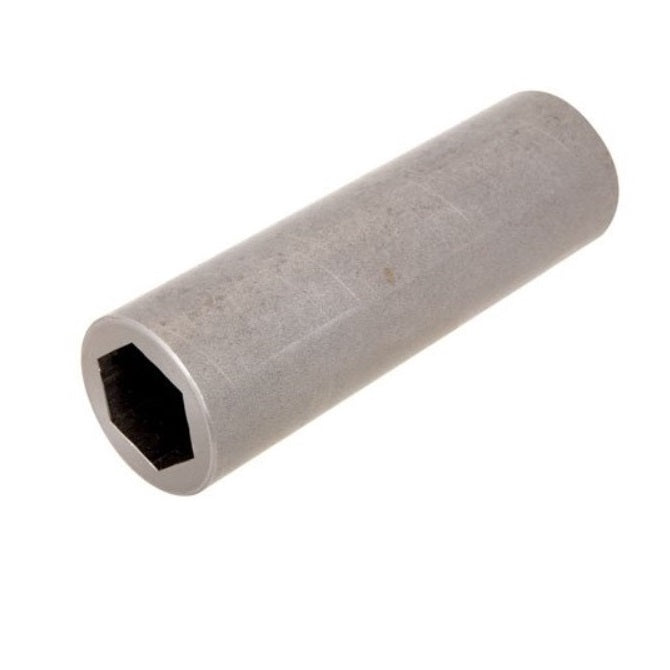

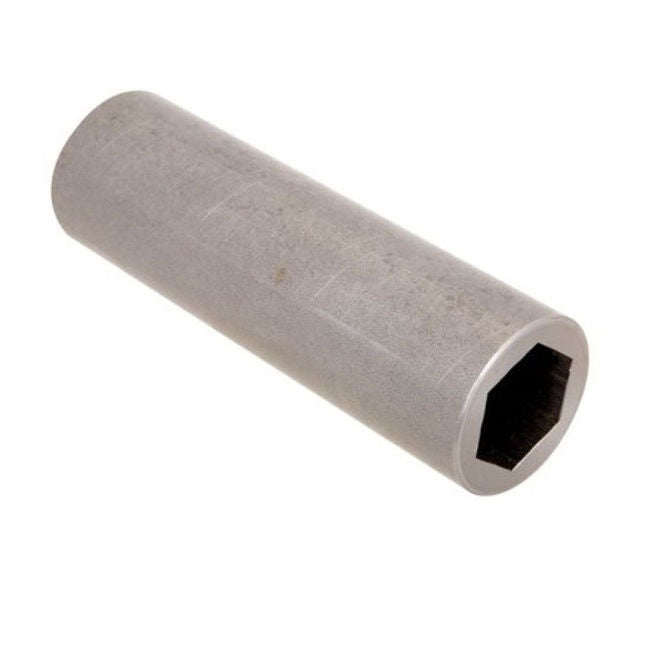

Sleeves - Hex Hole - HardenedHardened Hex Hole Sleeves. Carefully turned to provide 0.076mm (0.003in) concentricity ID to OD. Pre-hardened to Rockwell 23-30C.
- Precisely machined, round outer surface and a uniform, precisely broached hex-shaped hole completely through its center.
Product Data
- Nominal Hex Size
:
25.4
mm
(Equiv. 1 in.) - Outside Diameter (OD)
44.450
mm
(Equiv. 1.75 in.) - Length (L)
127.000
mm
(Equiv. 5 in.) - Actual Hex Size (H) 25.502 mm
- Material Pre-Hardened Steel
Product Compliance and Data
Additional Resources
Cross References
- HHS-122
- HHS122
