PBL330RS - Datasheet
MBA
Category Information

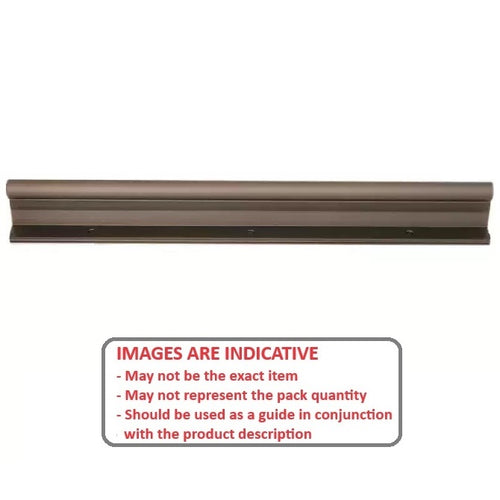

Linear - Rail Supports - With Shaft - One PieceOne Piece With Shaft Rail Supports Linear. One piece construction made from 6061-T6 Aluminium with ceramic coating to Mil-8625. Suitable for use with Frelon lined linear bearings.
- Not suitable for linear ball bearings
- Weld spatter, paints and other contaminants will not stick to the shaft.
- Vibration resistant and non-magnetic.
- Not suitable for harsh washdown environments.
Product Data
- Suitable Shaft Size (d)
:
25.40
mm
(Equiv. 1 in.) - Height to Shaft Centre (H)
44.45
mm
(Equiv. 1.75 in.) - Length (+0/-1.59mm)
609.60
mm
(Equiv. 24 in.) - Foot Height (V) 6.35 mm
- Base Width (A) 53.98 mm
- Support Angle (a) 152.4 °
- Hole Spacing (T) 7.14 mm
- Base Mtg. Hole (U) 38.10 mm
Product Compliance and Data
Additional Resources
Cross References
- 104K35
- PBL-330
- PBL330
