ACE1602RS - Datasheet

ACE

Category Information

Shock Absorbers - Self-Compensating

Self-Compensating Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 25.4 mm
    • Thread (T) M25x1.5
    • Length (A/F) 141.73 / 103.12 mm
    • Shaft Diameter (D) 7.87 mm
    • Effective Weight 399.16 - 2267.96 KG
    • Wrench Flat (EE) 21.29 mm
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • Reid Tool® ACE-1602
      • ACE1602
      View full details

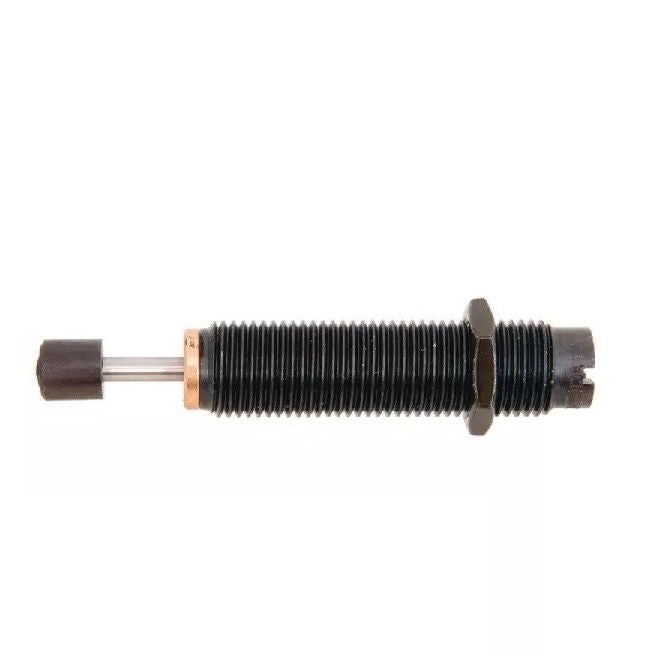

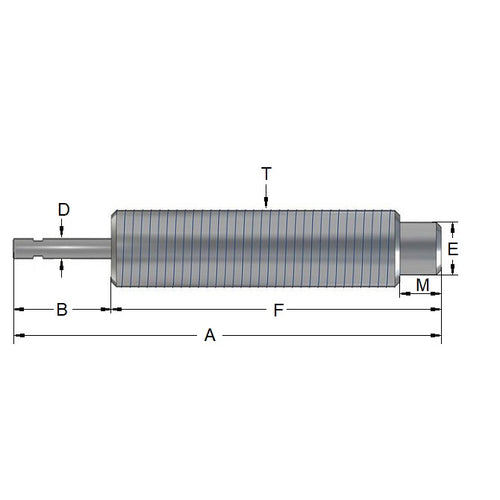

      ACE1602RSDiagramACE1602RSImage
