MAG-BT-25-016-AN - Datasheet
MBA
Category Information

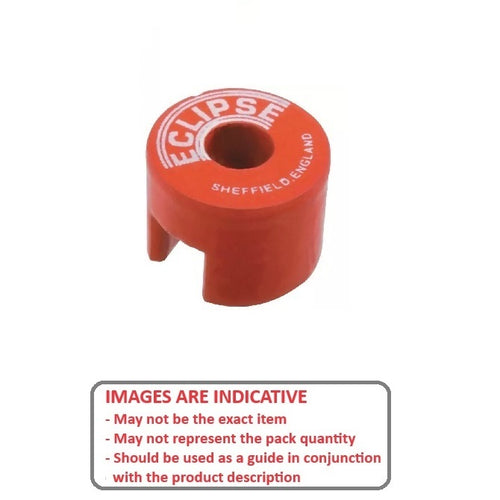

Magnets - Button AlnicoButton Alnico Magnets. Supplied with keeper
- Permanent magnet made from an alloy of Aluminum, Nickel, and Cobalt, along with iron and sometimes other metals like copper or titanium.
- Known for their excellent heat resistance and corrosion resistance, making them ideal for high-temperature applications like electric motors, sensors, and speakers.
- While weaker than rare-earth magnets, Alnico magnets are more durable and stronger than ferrite magnets.
Product Data

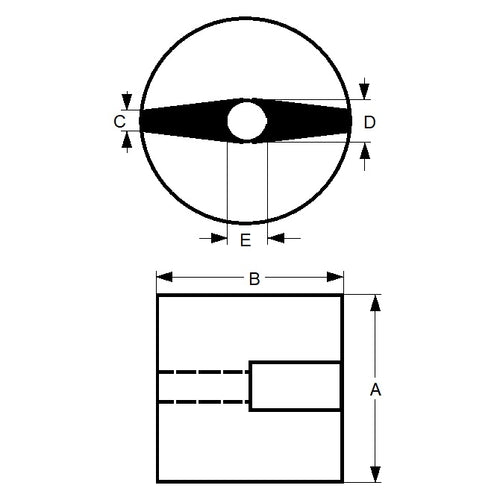

- Diameter (A) : 25.4 mm
- Length (B) 15.88 mm
- Slot End Width (C) 5.54 mm
- D 8.74 mm
- E 4.75 mm
- Pull 3.57 kg
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® E823
