ED11BRS - Datasheet

ACE

Category Information

Shock Absorbers - Hydraulic - Self-Compensating

Self-Compensating Hydraulic Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 25.4 mm
      (Equiv. 1 in.)
    • Thread (C) 1-12 UNF (25.4mm)
    • Length (A/F) 141.48 / 102.62 mm
      (Equiv. 5.57 in.)
    • Shaft Diameter (D) 6 mm
    • Bore 13 mm
    • Max. Shock Force 567 KG
    • Max. Propelling Force 227 KG
    • Nom. Coil Spring Force Exten 1 KG
    • Nom. Coil Spring Force Compres 3 KG
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ED-11B
      • ED11B
      View full details

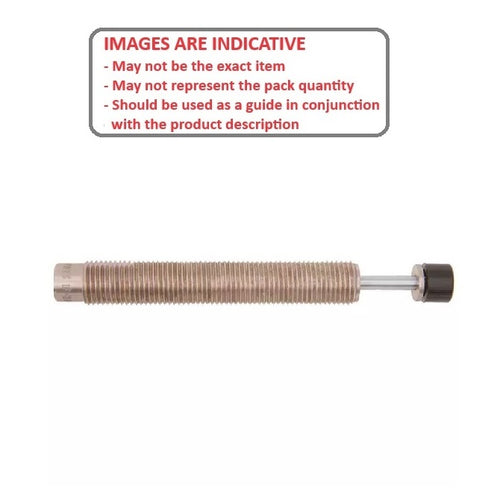

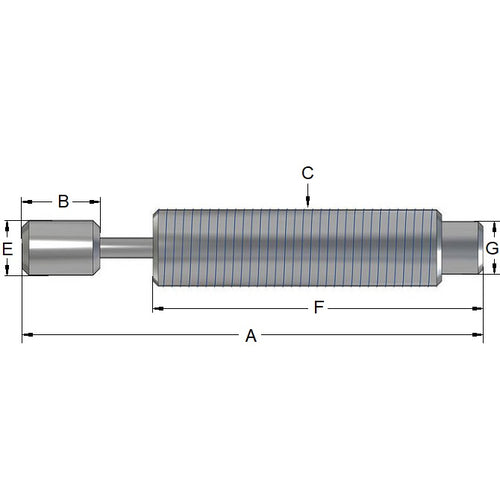

      ED11BRSDiagramED11BRSImage
