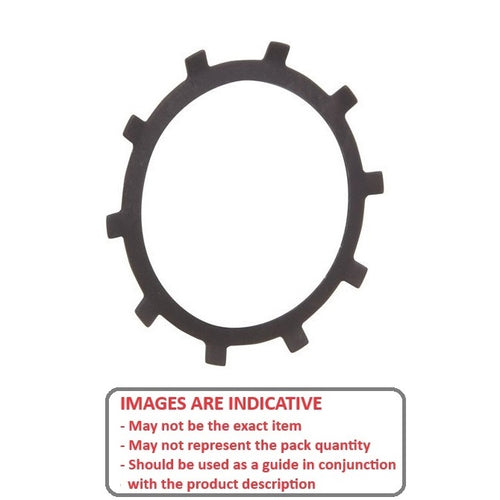

RPI-254-255-Z - Datasheet

MBA

Product Data

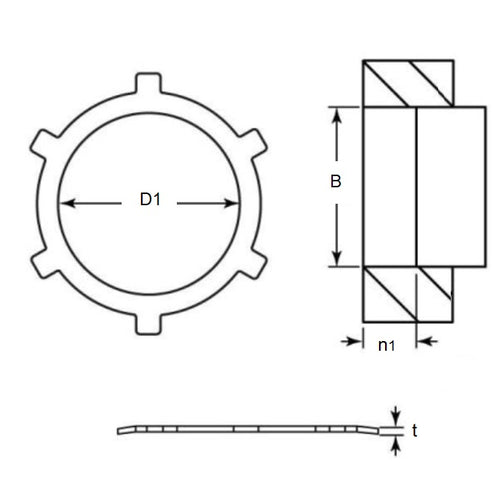

• Housing Bore (B) Min : 25.35 mm
  (Equiv. 0.998 in.)
• Housing Bore (B) Max 25.45 mm
  (Equiv. 1.002 in.)
• Inside Clearance (D1) 19.05 mm _{+ / - 0.26}
  (Equiv. 0.75 in.)
• Thickness (t) 0.38 mm +/- 0.06
• Recommended Depth (n1) 1.52 mm
• Thrust Load 1037 kg.cm
• Material Steel Zinc Plated

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

• Circlips & E-Clips Catalogue
• Snap Rings Catalogue
• Stainless Steel Retaining Ring Material

Cross References

• NoCor TI-100-ZD
• N1305-0100AZD
• N1305-0100-AZD
• N13050100AZD
• TI100ZD
