CFB025-25-060M-R45 - Datasheet
MBA
Category Information

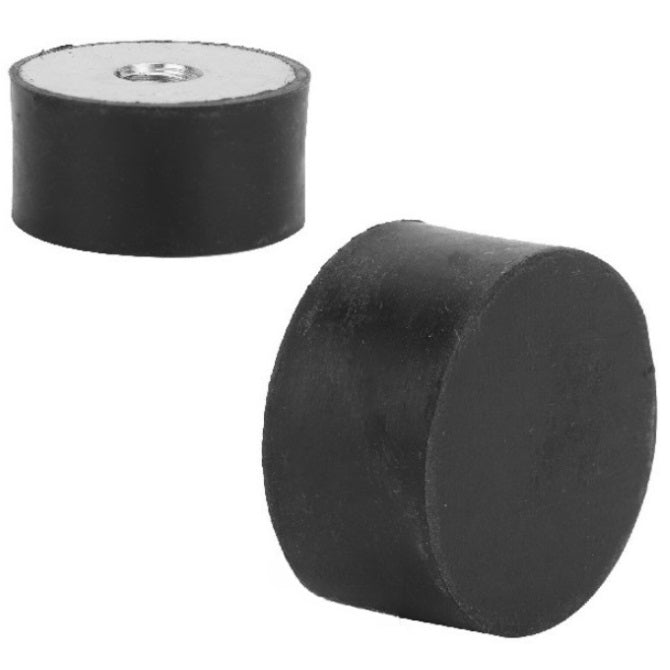

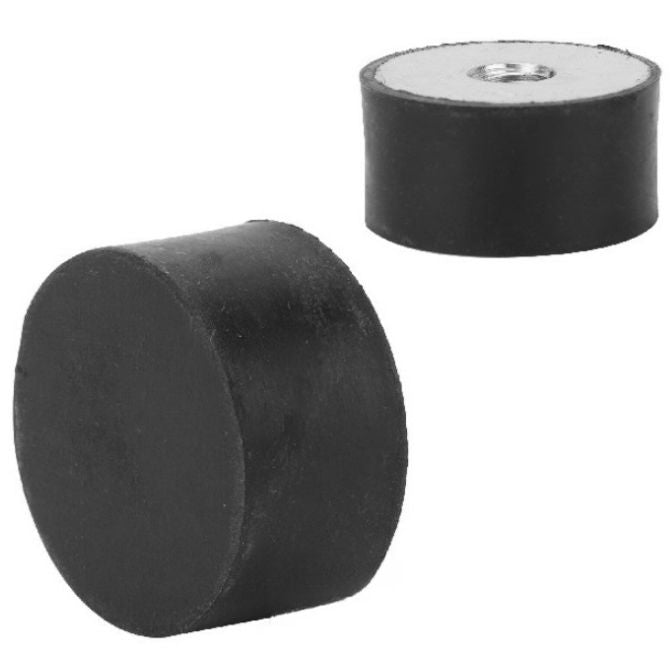

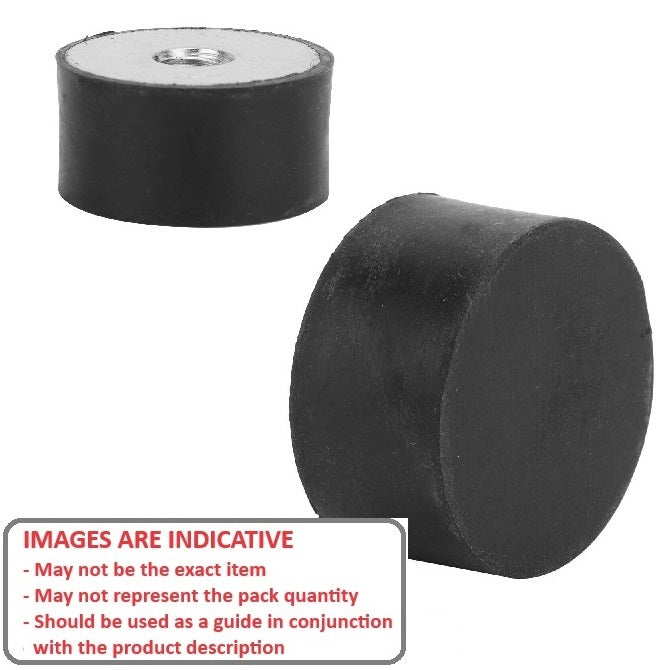

Mounts - Buffer - FemaleFemale Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
- Also see Bumpers
Product Data

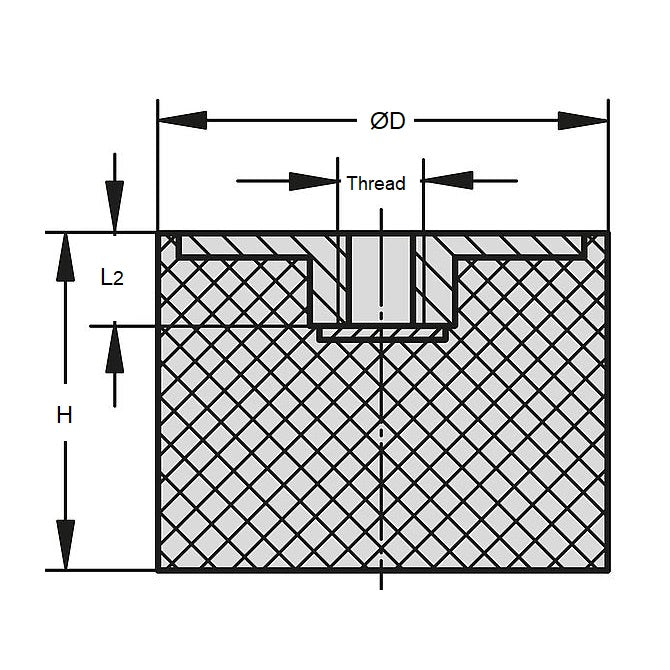

- Nom. Body Diameter (D) : 25.0 mm
- Body Height (H) 25.0 mm
- Thread Size M6x1
- Shore Hardness 45
- Compression Load 45.5 Kg (lbs)
- Deflection 6.3 mm
- Configuration Female to Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 2525FFB0645
- 2525FFB06-45
