CFB025-20-060M-R60 - Datasheet

MBA

Category Information

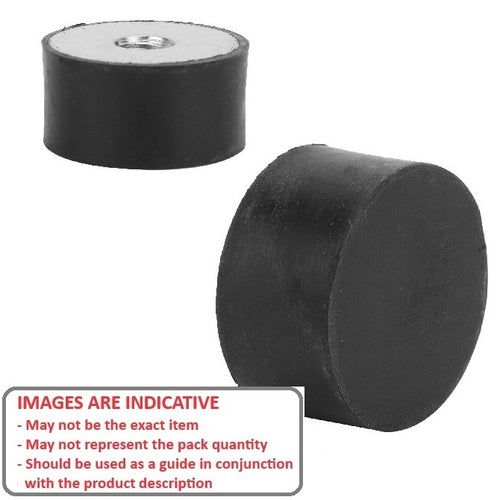

Mounts - Buffer - Female

Female Buffer Mounts. Vibration dampening

  • An expanded range may be available on special order. Please enquire.
  • Also see Bumpers

Product Data

  • Nom. Body Diameter (D) : 25.0 mm
  • Body Height (H) 20.0 mm
  • Thread Size M6x1
  • Shore Hardness 60
  • Compression Load 95 Kg (lbs)
  • Deflection 5.0 mm
  • Configuration Female to Blank
  • Material Natural Rubber
Country of Origin: GB

Product Compliance and Data

Additional Resources

Cross References

  • Misumi® C-DE2520-6
  • EZY62520
  • E-ZY-6-25-20
  • CDE25206
View full details

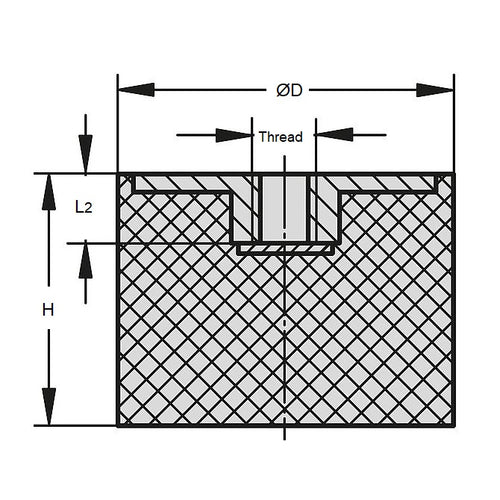

CFB025-20-060M-R60DiagramCFB025-20-060M-R60Image
