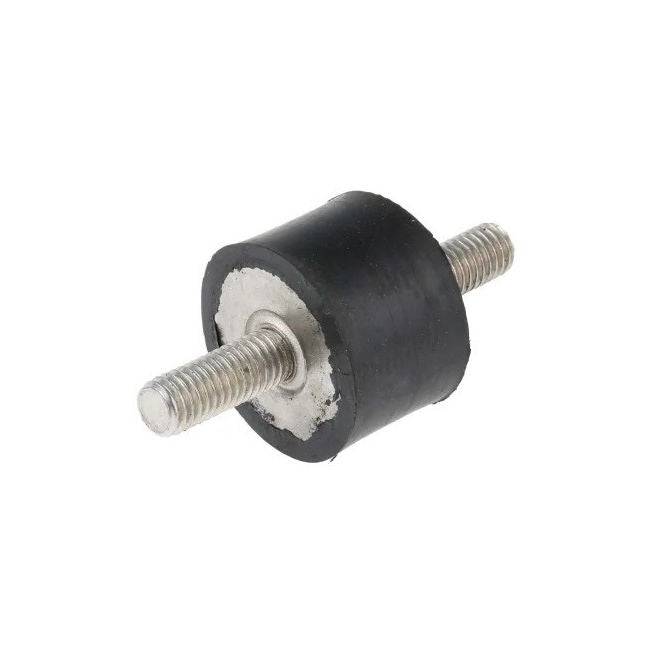

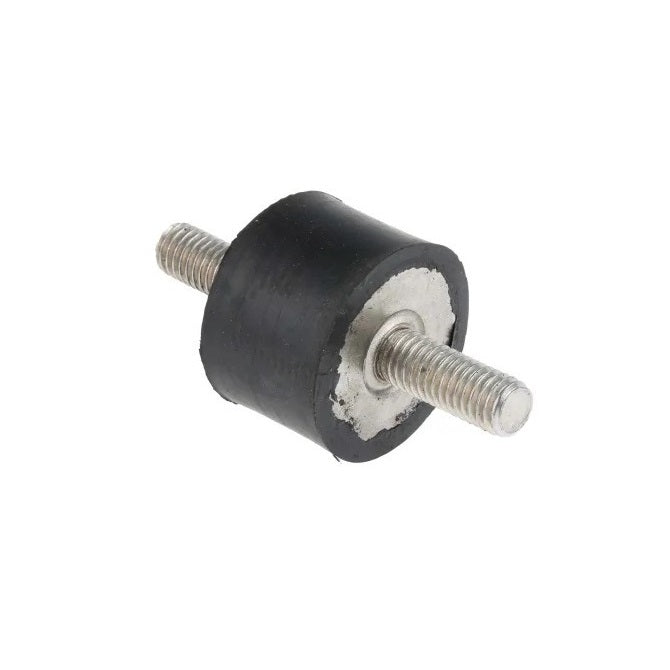

CMM025-20-060M-R60 - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

• Nom. Body Diameter (D) : 25.0 mm
  (Equiv. 0.984 in.)
• Body Height (H) 20.0 mm
  (Equiv. 0.787 in.)
• Thread Size M6x1
• Shore Hardness 60
• Thread Length (L1) 18.0 mm
• Compression Load 29 (62) Kg (lbs)
• Deflection 1.6 mm
• Max Shear Load 5.1 (11.2) Kg (lbs)
• Configuration Male to Male
• Material Natural Rubber

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Cylindrical Bobbin Mounts PDF Quick Guide


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• Trelleborg 20-00559
• 6217K35
• Misumi C-VV2520-18
• CVV252018
• 2000559
