CFB025-17-060M-R70 - Datasheet

MBA

Category Information

Mounts - Buffer - Female

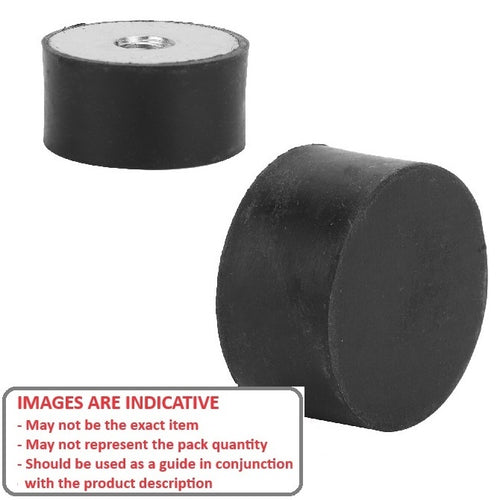

Female Buffer Mounts. Vibration dampening

  • An expanded range may be available on special order. Please enquire.
  • Also see Bumpers

Product Data

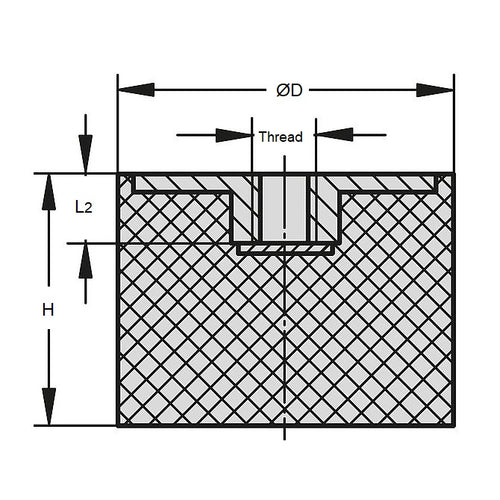

  • Nom. Body Diameter (D) : 25.0 mm
  • Body Height (H) 17.0 mm
  • Thread Size M6x1
  • Shore Hardness 70
  • Compression Load 140 Kg (lbs)
  • Deflection 4.3 mm
  • Configuration Female to Blank
  • Material Natural Rubber
Country of Origin: GB

Product Compliance and Data

Additional Resources

Cross References

  • 2517FFB0670
  • 2517FFB06-70
