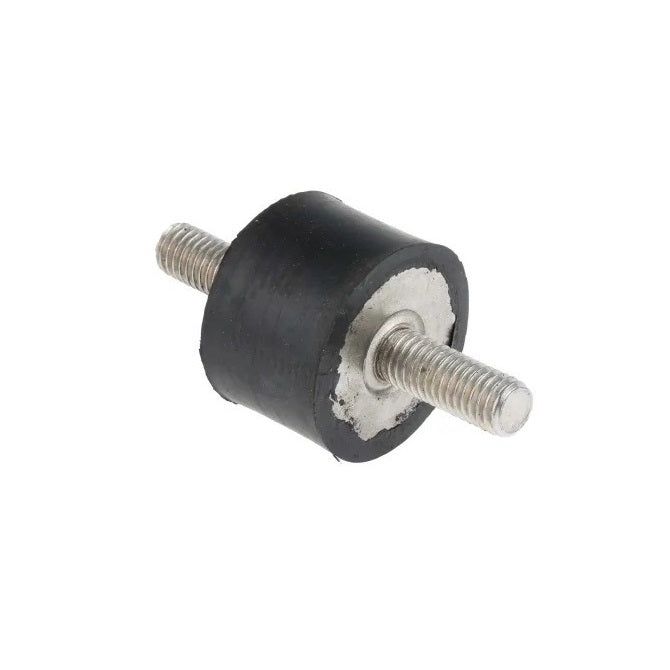

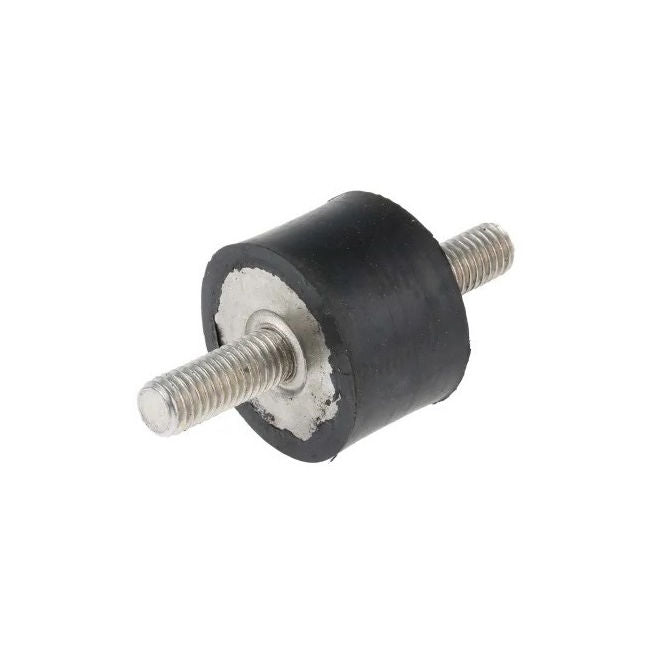

CMM025-15-060M-R60 - Datasheet

MBA

Product Data

• Nom. Body Diameter (D) : 25.0 mm
  (Equiv. 0.984 in.)
• Body Height (H) 15.0 mm
  (Equiv. 0.591 in.)
• Thread Size M6x1
• Shore Hardness 60
• Thread Length (L1) 18.0 mm
• Compression Load 34 (73) Kg (lbs)
• Deflection 1.2 mm
• Max Shear Load 5.1 (11.2) Kg (lbs)
• Configuration Male to Male
• Material Natural Rubber

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Cylindrical Bobbin Mounts PDF Quick Guide


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• Trelleborg 20-00558
• Misumi C-VV2515-18
• CVV251518
• 2000558
• A-ZY-6-25-15
• AZY62515
