CMF025-15-060M18-R60 - Datasheet

MBA

Category Information

Mounts - Bobbin - Male to Female

Male to Female Bobbin Mounts. Vibration dampening

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Nom. Body Diameter (D) : 25.0 mm
    (Equiv. 0.984 in.)
  • Body Height (H) 15.0 mm
    (Equiv. 0.591 in.)
  • Thread Size M6x1
  • Shore Hardness 60
  • Thread Length/Depth (L1/L2) 18.0 / 6.0 mm
  • Compression Load 35 (75) Kg (lbs)
  • Deflection 1.2 mm
  • Max Shear Load 6.1 (13.4) Kg (lbs)
  • Configuration Male to Female
  • Material Natural Rubber
Country of Origin: GB

Product Compliance and Data

Additional Resources

Cross References

  • AVI 2515MF18-60-M6
  • 2515MF1860M6
View full details

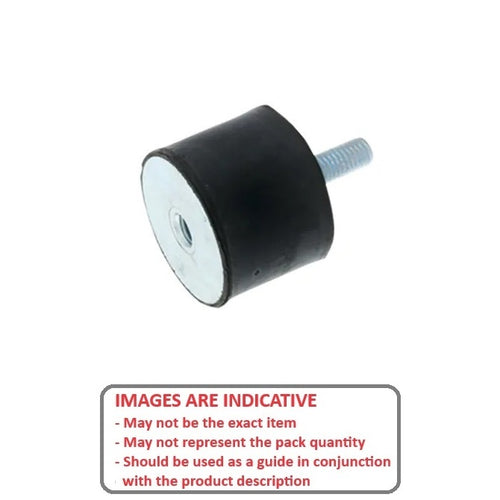

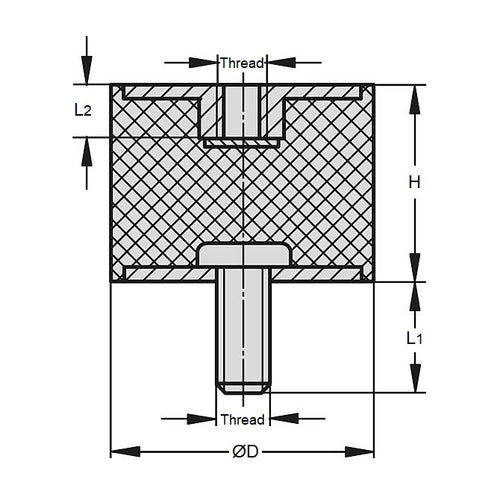

CMF025-15-060M18-R60DiagramCMF025-15-060M18-R60Image
