P-030G-024-090FF-AL-E-064 - Datasheet
MBA
Category Information

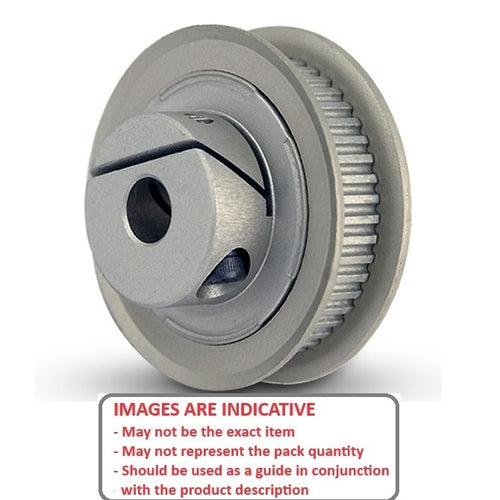

Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic - EZ-LockEZ-Lock Metallic 9mm Wide GT 3.000mm Pitch Metric Timing. Timing Pulleys to suit GT 3.000mm Pitch Timing Belts 9mm Wide. Use with GT2 or GT3 type belts.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Aluminium Alloy
- EZ-Lock hub clamps to the shaft with a socket head cap screw
- Cap screw is supplied with the pulley
Product Data
- Number of Teeth : 24
- Max Belt Width
9.00
mm
(Equiv. 0.354 in.) - Bore (d)
6.350
mm
(Equiv. 0.25 in.) - Bore Type Finished
- Locking Type EZ-Lock Hub

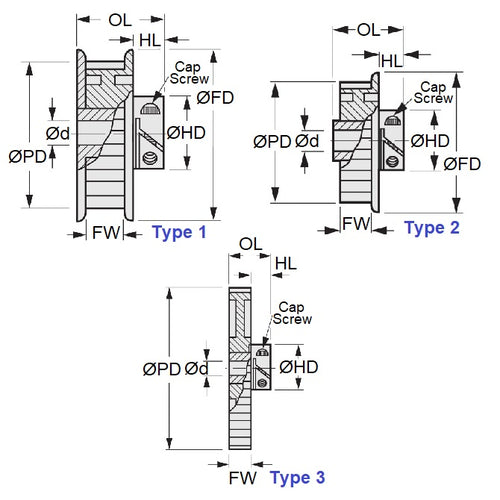

- Type 2
- Pitch Dia. (PD) 22.91 mm
- Flange Diameter (FD) 26.0 mm
- Overall Length 20.6 mm
- Hub Diameter (HD) 19.5
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates 24-3P09-IA3
- P030G024090FHALE064
- 243P09IA3
- A6D53024DF0908
- A6D53-024DF0908
