MMI-2495-M - Datasheet
MBA
Category Information

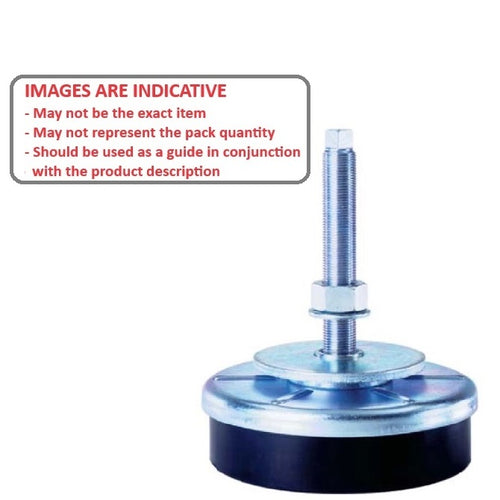

Mounts - Machinery Industrial - Medium DutyMedium Duty Machinery Industrial Mounts. High strength machined components. Rapid installation and leveling. 80% vibration reduction. Vertical and horizontal isolation.
- For milling mchines, presses, injection molding, packaging machines.
- Industrial machine mount designed with high strength construction for reduction of both shock and vibration.
- Prevents vibration from affecting other machines and protects mounted equipment from external vibration effects.
- Provides precision leveling with large support plate and meets OSHA standards by preventing machinery walking.

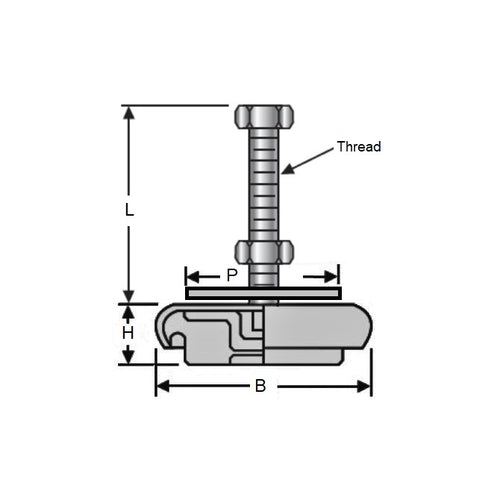

Product Data
- Load Capacity : 2494.7 Kg
- Base Diameter
158.750
mm
(Equiv. 6.25 in.) - Overall Length
53.086
mm
(Equiv. 2.09 in.) - Height 188.468 mm
- Adjustment 14.986 mm
- Thread Size M20.0 x 1.50 (20.0mm)
- Thread Length 168.275 mm
- Non-Impact Machinery Load 2494.756 Kg
- 125 Strokes per Min Load 1397.063 Kg
- 180 Strokes per Min Load 1097.693 Kg
- 200 Strokes per Min Load 798.322 Kg
- Injection Molding 988.831 Kg
- Material Rubber and Steel
Product Compliance and Data
Additional Resources
Cross References
- RY-27003
- RY27003
