MSM-200M-051-CGCRP - Datasheet
MBA
Category Information

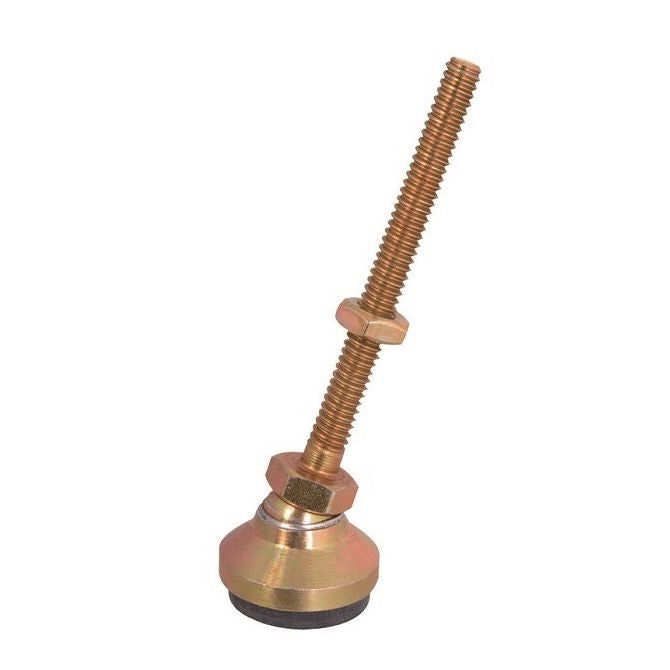

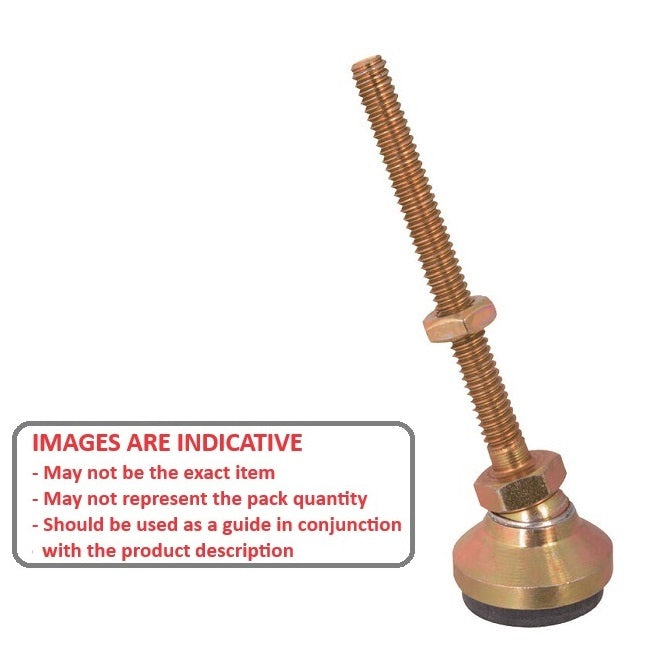

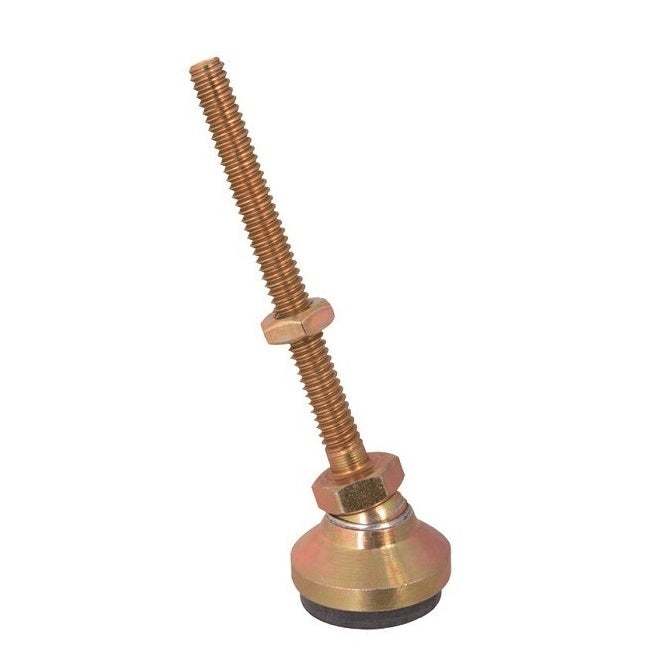

Mounts - Levelling Studded - Swivel - Gold Chromate - Rubber PaddedRubber Padded Gold Chromate Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M20 (20x2.5mm)
- Base Diameter (D)
76.0
mm
(Equiv. 2.992 in.) - Foot Height (C)
41.0
mm
(Equiv. 1.614 in.) - Thread Length (F) 51.0 mm
- Base Height (E) 16.00 mm
- Overall Height 92.0 mm
- Load Rating 2450 Kg
- Finish Gold Chromate
- Pad Thickness 3.2 mm
- Pad Material Elastomer
- Hex Flats (B) 30.000 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MSM2450M20GR
- MLP-85
- MLP85
