MSF-191F-CGC - Datasheet
MBA
Category Information

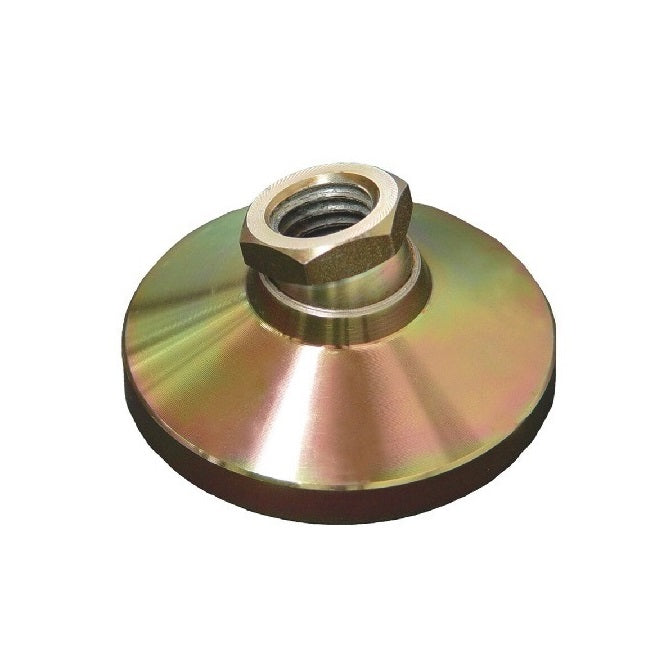

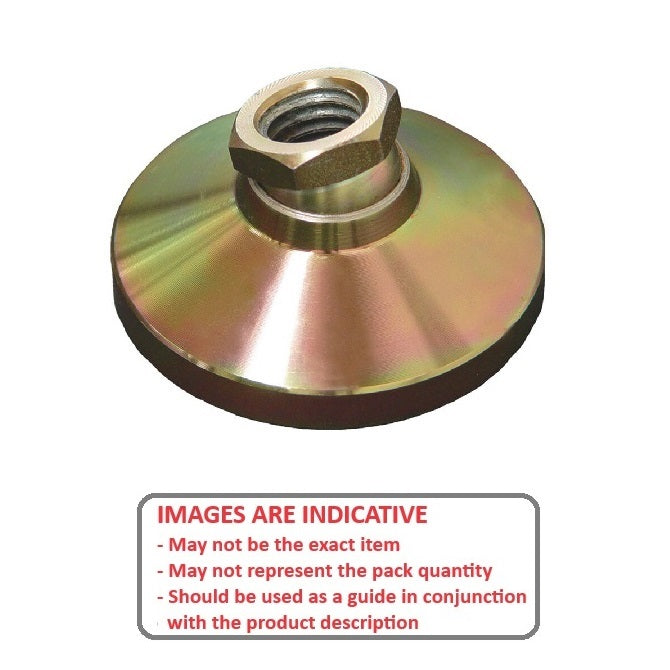

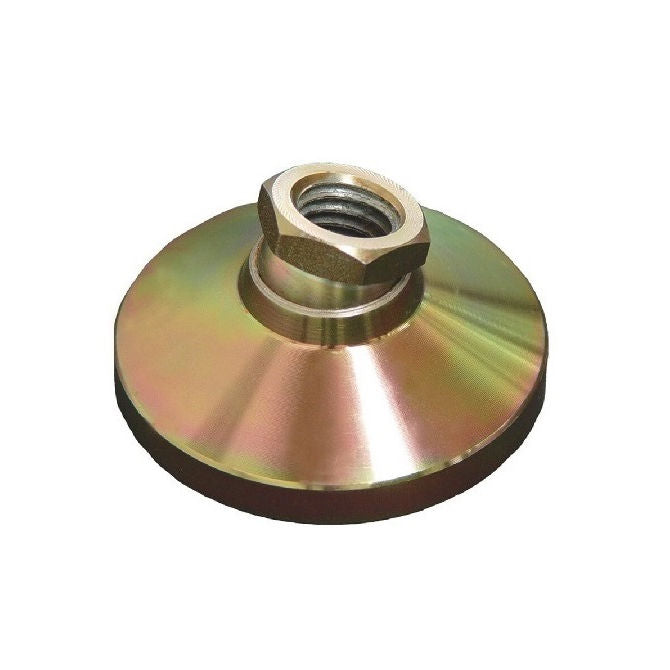

Mounts - Levelling Socket - Swivel - Standard - Gold ChromateGold Chromate Standard Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 3/4-16 UNF (19.05mm)
- Base Diameter (D)
76.2
mm
(Equiv. 3 in.) - Foot Height (C)
38.1
mm
(Equiv. 1.5 in.) - Min. Thread Depth 15.8 mm
- Base Height (E) 12.70 mm
- Load Rating 2450 Kg
- Steel
- Finish Gold Chromate
- Hex Flats (B) 26.99 mm
- Material Gold Chromate
Product Compliance and Data
Additional Resources
Cross References
- MSF2450191FG
- L10
- L-10
