MSF-191C-CBCRP - Datasheet
MBA
Category Information

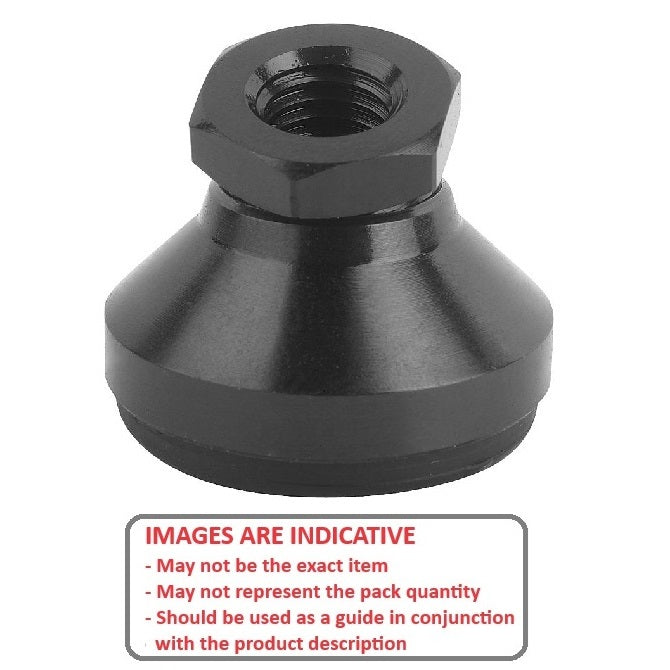

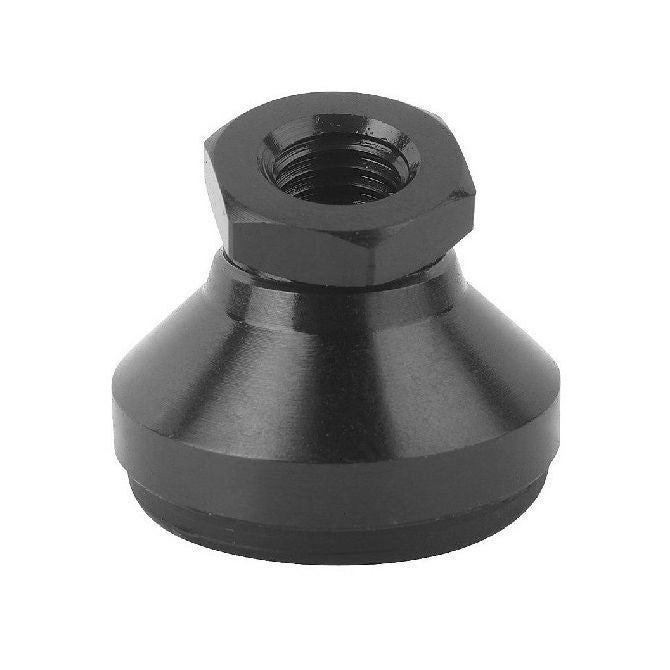

Mounts - Levelling Socket - Swivel - Black Chromate - Rubber PaddedRubber Padded Black Chromate Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 3/4-10 UNC (19.05mm)
- Base Diameter (D)
76.2
mm
(Equiv. 3 in.) - Foot Height (C)
41.3
mm
(Equiv. 1.626 in.) - Min. Thread Depth 15.8 mm
- Base Height (E) 15.88 mm
- Load Rating 2450 Kg
- Finish Black Chromate
- Pad Thickness 3.2 mm
- Pad Material Elastomer
- Hex Flats (B) 26.98 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MSF2450191CBR
- LEBK3
- LEBK-3
