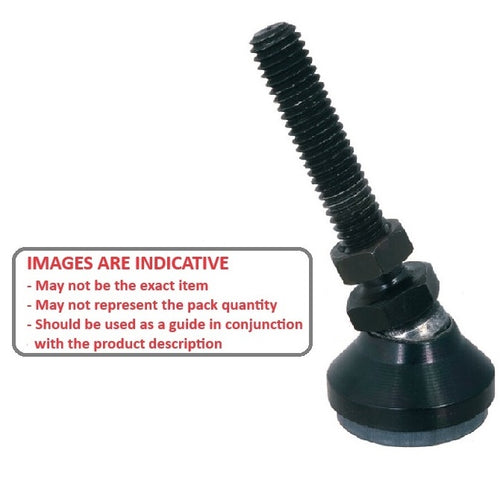

MSM-191C-102-CBCRP - Datasheet
MBA
Category Information
Mounts - Levelling Studded - Swivel - Black Chromate - Rubber PaddedRubber Padded Black Chromate Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 3/4-10 UNC (19.05mm)
- Base Diameter (D)
76.2
mm
(Equiv. 3 in.) - Foot Height (C)
41.3
mm
(Equiv. 1.626 in.) - Thread Length (F) 101.6 mm
- Base Height (E) 15.88 mm
- Overall Height 142.9 mm
- Load Rating 2450 Kg
- Finish Black Chromate
- Pad Thickness 3.2 mm
- Pad Material Elastomer
- Hex Flats (B) 26.988 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 6111K531
- MSM2450191CLBR
- TEBK35
- TEBK-35
