MSF-060M-S3-058 - Datasheet
MBA
Category Information

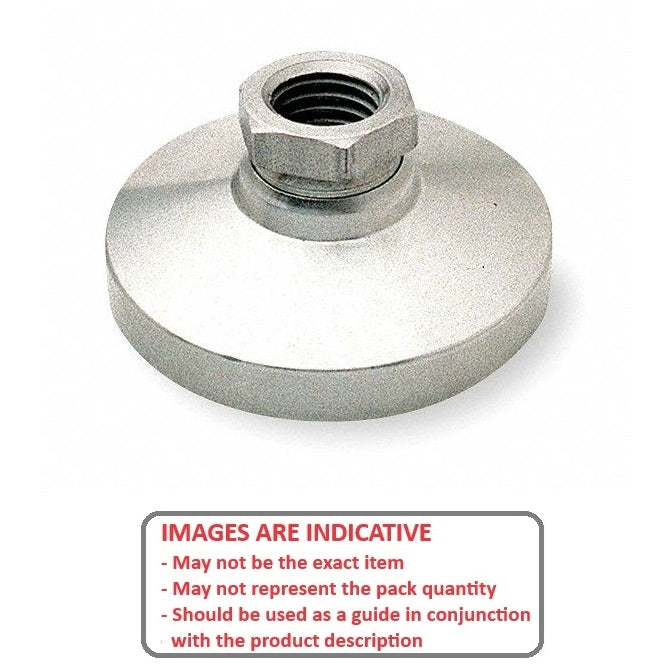

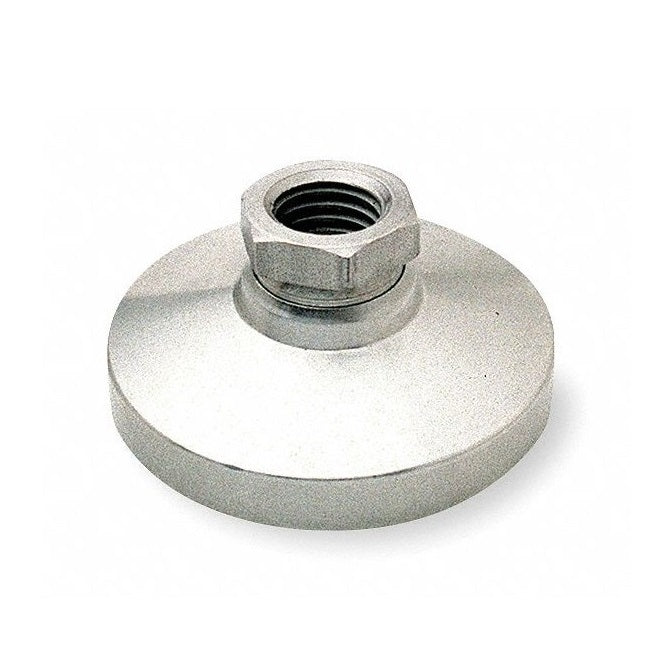

Mounts - Levelling Socket - Swivel - 303 Stainless - StandardStandard 303 Stainless Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M6 (6x1mm)
- Base Diameter (D)
19.1
mm
(Equiv. 0.752 in.) - Foot Height (C)
13.5
mm
(Equiv. 0.531 in.) - Min. Thread Depth 5.8 mm
- Base Height (E) 2.80 mm
- Load Rating 240 Kg
- Hex Flats (B) 10.00 mm
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- MSF0245M06S3
- HVLM-5SS
- HVLM5SS
