G019P-024-V32-048-048-N - Datasheet
MBA
Category Information

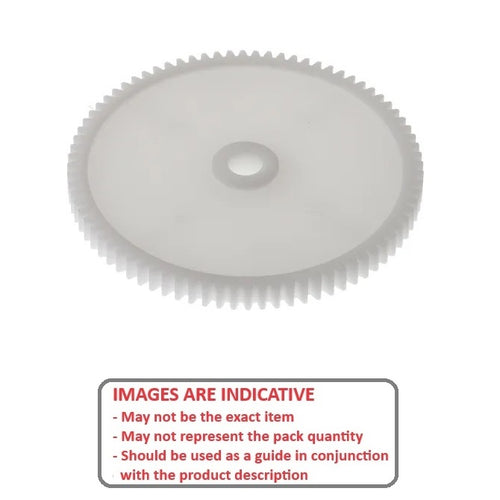

Gears - Spur - Hubless - 32DP - Plastic - 14.5 Degree PA14.5 Degree PA Plastic 32DP Hubless Spur Gears. PCD in mm = No. of Teeth x 0.79375 (1/32 in.). 14.5 Degree Pressure Angle. DP stands for Diametrical Pitch and is an imperial measurement system.
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 1 inch for every 32 teeth
- 32 Diametrical Pitch. Approx 2.49mm between the teeth.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 24

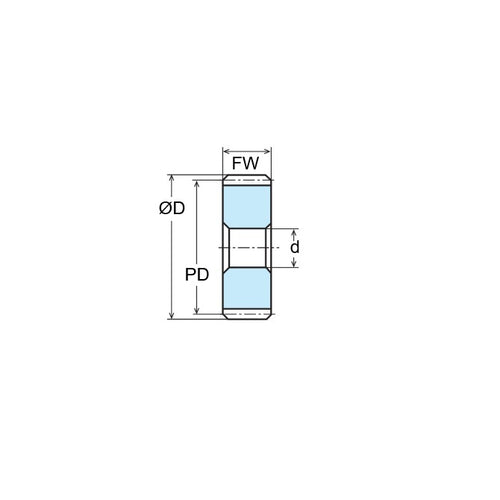

- Pitch Circle Diameter (PD)
19.05
mm
(Equiv. 0.75 in.) - Bore (d)
4.762
mm
(Equiv. 0.187 in.) - Outside Diameter (OD) 20.650 mm
- Face Width (FW) 4.76 mm
- Type Hubless
- Quality Commercial - Moulded
- Material Nylon (Polyamide 6/6)
Product Compliance and Data
Additional Resources
Cross References
- G019B24V32048048NN
