G012B-024-M05-030-040-A-P - Datasheet
MBA
Category Information

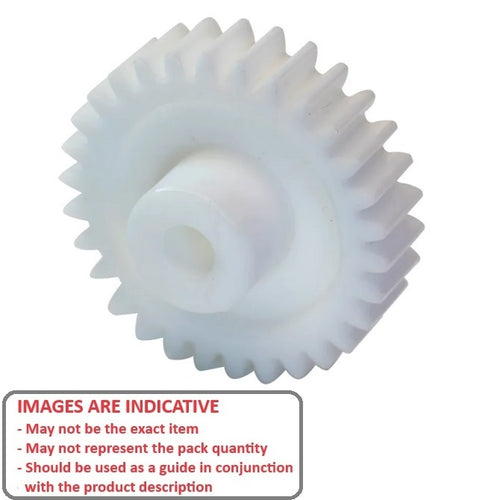

Gears - Spur - Hubbed - Module 0.5 - Plastic - StandardStandard Plastic Module 0.5 Hubbed Spur Gears. PCD in mm = No. of Teeth x 0.5. 20 Degree Pressure Angle.
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 0.5mm per tooth
- Module 0.5. Approximately 1.57mm between the teeth.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 24
- Pitch Circle Diameter (PD)
12.00
mm
(Equiv. 0.472 in.) - Bore (d)
4.000
mm
(Equiv. 0.157 in.) - Outside Diameter (OD) 13.000 mm
- Face Width (FW) 3.000 mm
- Type Hubbed
- 10.00
- 7.00
- Locking Method None
- Quality Commercial - Molded
- Material Acetal - No Insert
Product Compliance and Data
Additional Resources
Cross References
- G012B24M05030040AP
