ECB-0212-0250-C - Datasheet
MBA
Category Information

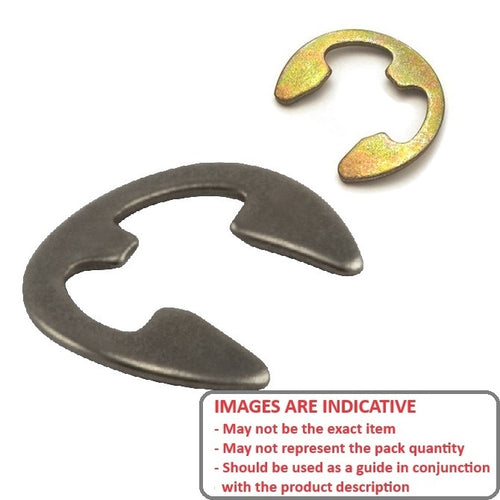

Retaining Rings - E-Clips - BowedBowed E-Clips Retaining Rings. For end play take up.
- An expanded range may be available on special order. Please enquire.
- Thickness tolerance +/- 0.025.
Product Data

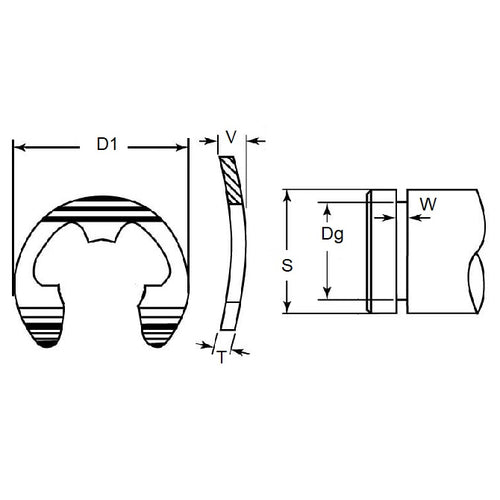

- Minimum Rec. Shaft Dia (S)
:
24.99
mm
(Equiv. 0.984 in.) - Groove Dia. (Dg)
21.21
mm
+ 0.076 / - 0.000
(Equiv. 0.835 in.) - Clip Thickness (T)
1.27
mm
+/ - 0.051
(Equiv. 0.05 in.) - Clip OD Loose (D1) 38.10 mm
- Groove Width (W) 1.45 mm
- Ring Width (X) 2.16 mm
- Force Required to Flatten 58.8 kg
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- N1501X098
- N1501-X098
