RST-098 - Datasheet
MBA
Category Information
Retaining Rings - External - Spiral Rings - Medium-Heavy Duty - Carbon SteelCarbon Steel Medium-Heavy Duty Spiral Rings External Retaining Rings. AME / WST / RST - Spring Steel
- An expanded range may be available on special order. Please enquire.
- Originally designed to fit NAS50-51 grooves, this series is a popular OEM specification.
- This two/three turn design is easier to install than the heavy duty RRN option.
- Equivalent to Associated Spring: AME, Smalley: WST, Spirolox and Ramsey: RST

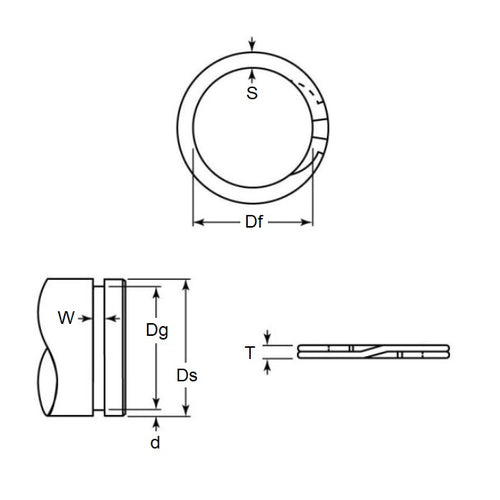

Product Data
- Shaft Diameter (Ds)
:
24.96
mm
(Equiv. 0.983 in.) - Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.) - Groove Dia. (Dg)
23.88
mm
(Equiv. 0.94 in.) - Approx. Loose Circlip ID (A) 23.46 mm + 0.00 / - 0.33
- Radial Wall (S) min/max 1.91 mm +/- 0.11
- Groove Width (W) 1.21 mm +/- 0.07
- Approx. Loose Clip OD 27.28 +/- 0.04
- Groove Depth (d) 0.56
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Smalley RST-098
- Spirolox RST-098
- Smalley WST-098
- WST098
- RST098
