PFL-L9-010-C - Datasheet
MBA
Category Information

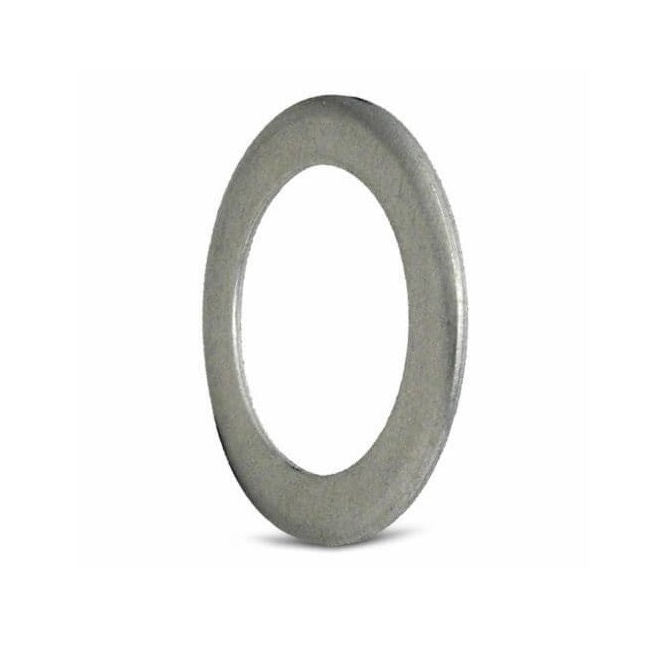

Pulley Flanges - Timing - Suit 9.525mm L Series - Carbon SteelCarbon Steel Suit 9.525mm L Series Timing Pulley Flanges. Use with timing pulley stock to custom make your own pulleys
- Timing pulley flanges are available in aluminium and carbon steel, and suit the timing pulley stock sizes listed on this site.
- These flanges provide a quick low cost way to cap the sides of special size timing pulleys made from stock lengths, without having to machine special flanges in the design.
Product Data
- Inside Diameter (d) : 24.790 mm
- Outside Diameter (D) 36.50 mm
- Suits Pulley Grooves 10 No.
- Width (H) 2.30 mm
- Thickness (S) 1.40 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Gates® 10L-FS
- 10LFS
- A6C4-10FS
- A6C4M10FS
- A6C410FS
