GM-076-D8-191-C - Datasheet
MBA
Category Information

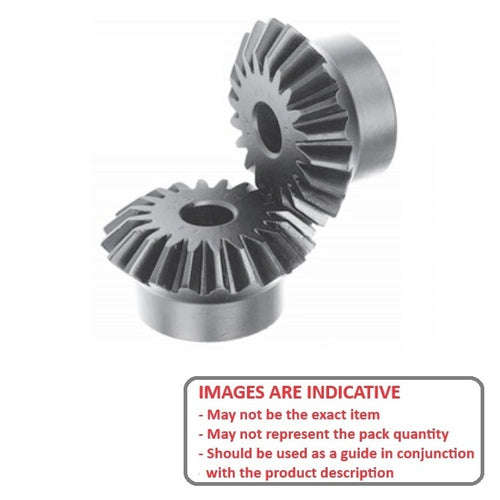

Gears - Mitre - 8DP Steel8DP Steel Mitre Gears. 1:1 Ratio. 20 Degree Pressure Angle - Carbon steel
- An expanded range may be available on special order. Please enquire.
- Mitre gears are used with a matching gear of the same pitch and number of teeth.
- This provides a 1 to 1 ratio on a 90 Degree angle.
- See Gears - Bevel for other ratios.

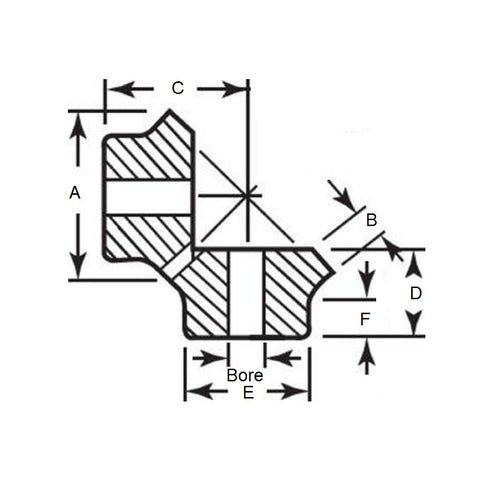

Product Data
- Number of Teeth : 24
- Pitch Diameter (pd)
76.200
mm
(Equiv. 3 in.) - Bore (d)
19.050
mm
(Equiv. 0.75 in.) - Overall Length (L) 40.208 mm
- Hub Diameter (hd) 44.450 mm
- Each
- Hub Projection (F) 20.574 mm
- Mounting Distance (C) 65.075 mm
- Face Width (B) 16.764 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- BOSTON L115Y
- GE115
- GE-115
