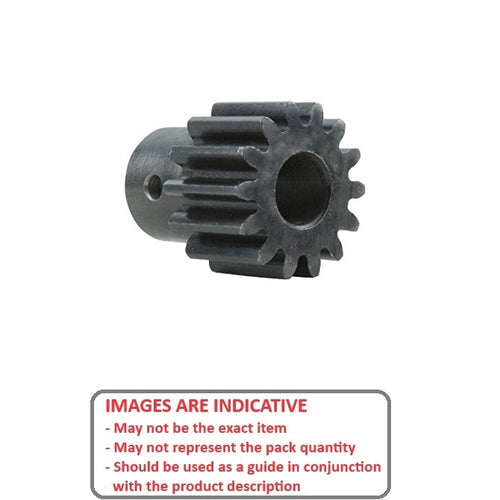

Gears - Spur - Hubbed - 16DP - 14.5 Degree Steel14.5 Degree Steel 16DP Hubbed Spur Gears. PCD in mm = No. of Teeth x 1.588 (1/16 in.). 14.5 Degree Pressure Angle. DP stands for Diametrical Pitch and is an imperial measurement system.
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 1 inch for every 16 teeth
- 16 Diametrical Pitch. Approx 4.98mm between the teeth.
Product Data
- Number of Teeth : 24
- Pitch Circle Diameter (PD)
38.100
mm
(Equiv. 1.5 in.) - Bore (d)
12.700
mm
(Equiv. 0.5 in.) - Outside Diameter (OD) 41.275 mm
- Face Width (FW) 12.700 mm
- Type Hubbed

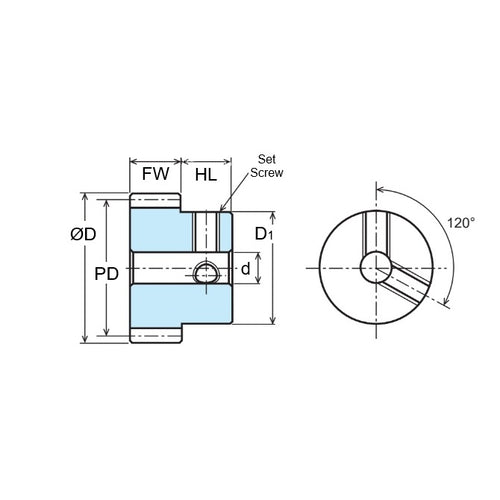

- Hub Diameter (D1) 30.480 mm
- Hub Projection (HL) 11.176 mm
- Locking Method None
- Quality Commercial
- Material Steel 0.20 carbon steel with no subsequent treatment
