GM-038-D16-127-C - Datasheet
MBA
Category Information

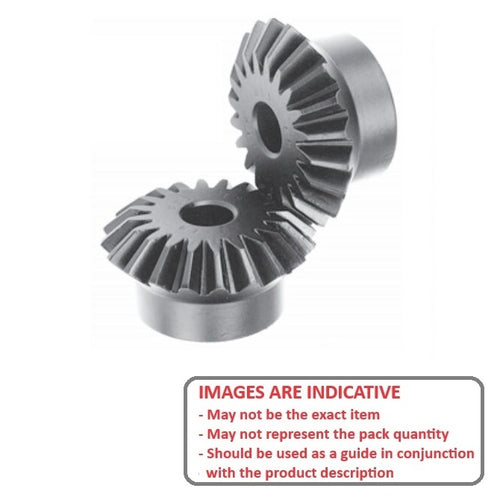

Gears - Mitre - 16DP Steel16DP Steel Mitre Gears. 1:1 Ratio. 20 Degree Pressure Angle - Unhardened Steel
- An expanded range may be available on special order. Please enquire.
- Mitre gears are used with a matching gear of the same pitch and number of teeth.
- This provides a 1 to 1 ratio on a 90 Degree angle.
- See Gears - Bevel for other ratios.

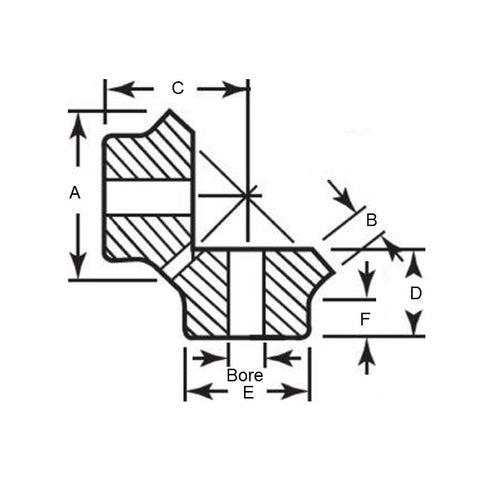

Product Data
- Number of Teeth : 24
- Pitch Diameter (pd)
38.100
mm
(Equiv. 1.5 in.) - Bore (d)
12.700
mm
(Equiv. 0.5 in.) - Overall Length (L) 22.352 mm
- Hub Diameter (hd) 25.400 mm
- Each
- Hub Projection (F) 12.700 mm
- Mounting Distance (C) 34.925 mm
- Face Width (B) 8.128 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- BOSTON L112Y
- GE-112
- GE112
