MSM-060M-025-CNPRP - Datasheet
MBA
Category Information

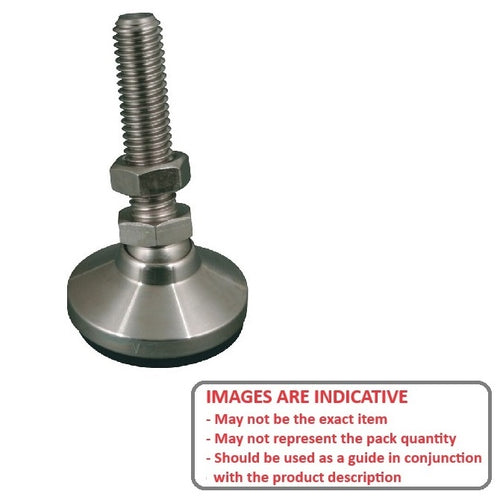

Mounts - Levelling Studded - Swivel - Plated - Rubber PaddedRubber Padded Plated Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M6 (6x1mm)
- Base Diameter (D)
19.0
mm
(Equiv. 0.748 in.) - Foot Height (C)
17.0
mm
(Equiv. 0.669 in.) - Thread Length (F) 25.0 mm
- Base Height (E) 6.00 mm
- Overall Height 42.0 mm
- Load Rating 230 Kg
- Finish Nickel Plated
- Pad Thickness 3.2 mm
- Pad Material Elastomer
- Hex Flats (B) 10.000 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MSM0235M06NPR
- MLP315
- MLP-315
