MLM-159C-152-S3RP-I - Datasheet

MBA

Category Information

Mounts - Levelling Studded - Industrial - Rubber Padded - 303 Stainless

303 Stainless Rubber Padded Industrial Levelling Studded Mounts. Levelling adjusters. These industrial mounts are an excellent and inexpensive solution for light duty applications such as office furniture, shelving, point of sale displays, cabinetry and small machinery.

  • An expanded range may be available on special order. Please enquire.
  • 303 Stainless Steel
  • Elastomer pad for non skid applications.

Product Data

  • Thread Size (A) : 5/8-11 UNC (15.88mm)
  • Base Diameter (D) 81.0 mm
    (Equiv. 3.189 in.)
  • Thread Length (F) 152.4 mm
  • Base Height (E) 28.6 mm
  • Overall Height (L) 180.98 mm
  • Load Rating 230 Kg
  • Pad Material Elastomer
  • Material Stainless Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • GL340
    • GL-340
    • MLM0230152159CS3R
    • MLM0230159C081LS3R
    View full details

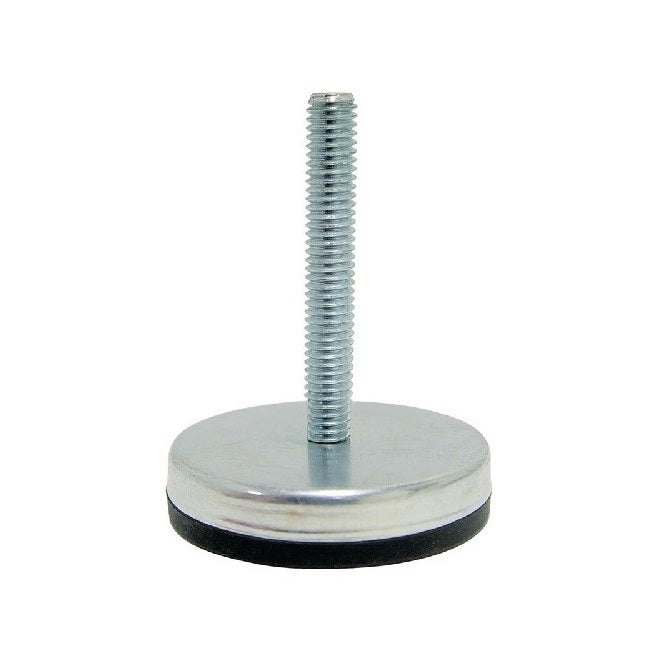

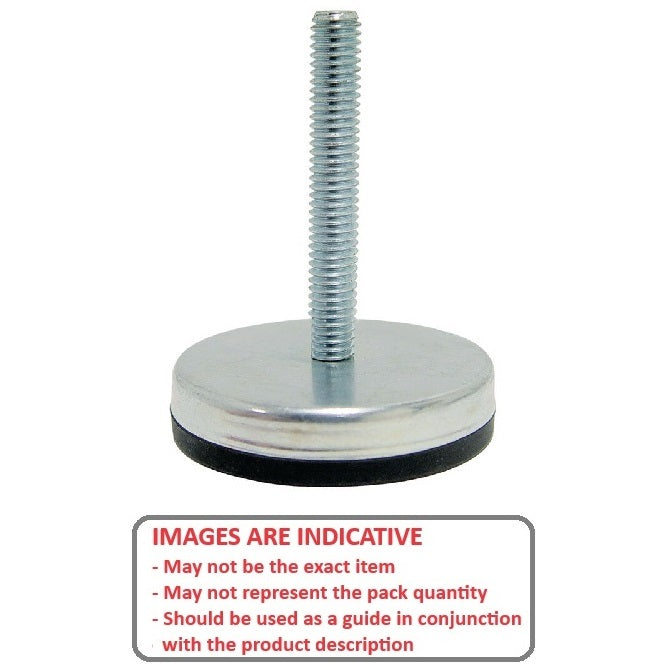

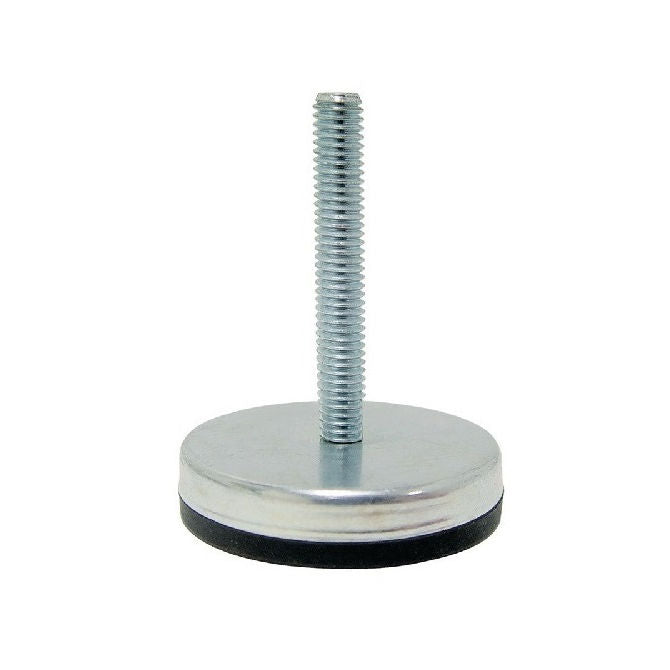

    MLM-159C-152-S3RP-IDiagramMLM-159C-152-S3RP-IImage
