Miniature Bearings Australia

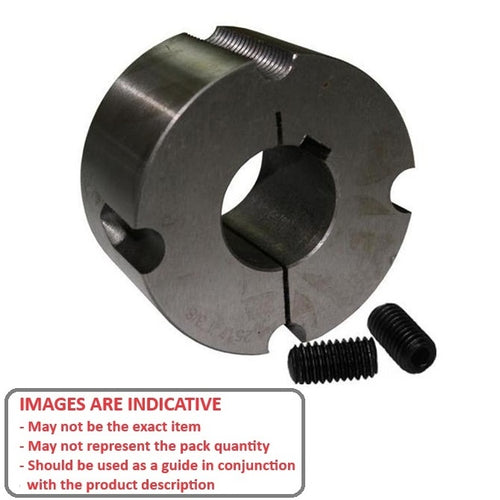

TLB-1615-0238 - Datasheet
MBA
Category Information
Bushings - TaperlockTaperlock Bushings. Taperlock Bushings for Pulleys and Sprockets.
- An expanded range may be available on special order. Please enquire.
- It is fastened tightly to the shaft via its tapered surface with the matching component.
- It provides flexibility between the main component to be suitable with many shaft sizes.

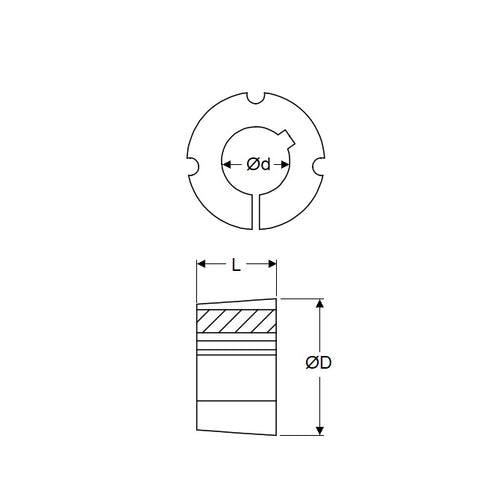

Product Data
- Bore (d) : 23.813 mm
- Large End Dia. (D) 57.0 mm
- Length (L) 38.1 mm
- Taperlock Series 1615
- No of Screws 2
- Screw Size 3/8x5/8 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Gates® 1615x15-16
- 57095K522
