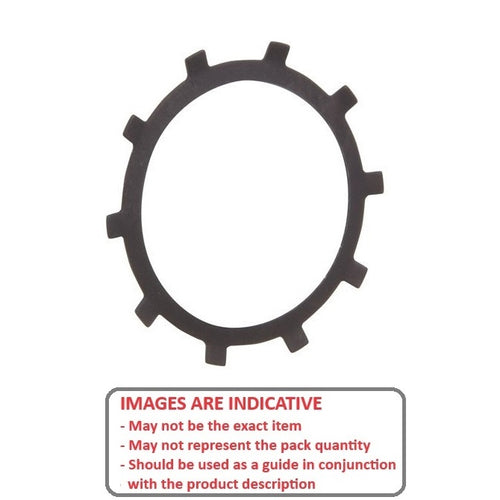

RPI-238-239-C - Datasheet

MBA

Product Data

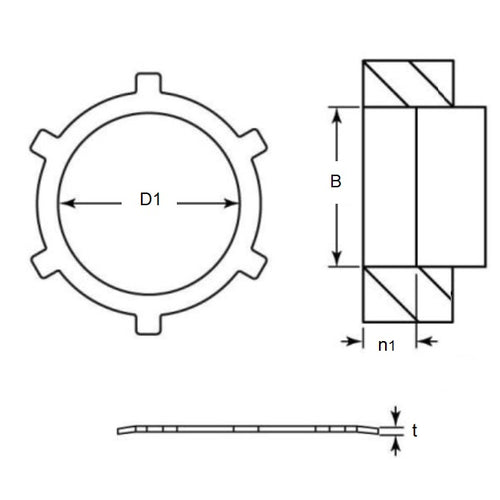

• Housing Bore (B) Min : 23.77 mm
  (Equiv. 0.936 in.)
• Housing Bore (B) Max 23.88 mm
  (Equiv. 0.94 in.)
• Inside Clearance (D1) 17.45 mm _{+ / - 0.26}
  (Equiv. 0.687 in.)
• Thickness (t) 0.38 mm +/- 0.06
• Recommended Depth (n1) 1.52 mm
• Thrust Load 968 kg.cm
• Material Carbon Spring Steel Self Finish

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

• Circlips & E-Clips Catalogue
• Snap Rings Catalogue
• Stainless Steel Retaining Ring Material

Cross References

• 98435A133
• NoCor TI-093
• N1305-0093-APP
• N13050093APP
• TI093
