Miniature Bearings Australia

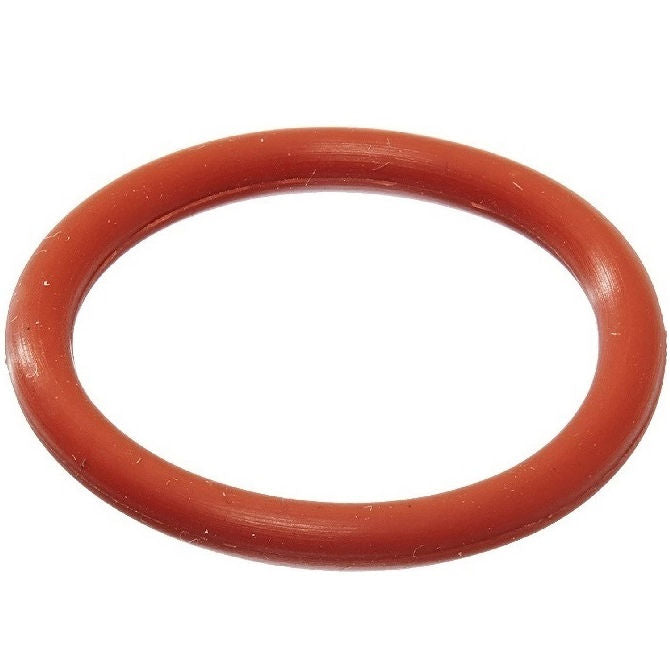

OR-02339-353-S70-213-R - Datasheet
MBA
Category Information
O-Rings - Silicone RubberSilicone Rubber O-Rings. High thermal resistance and cold flexibility. Some dental applications are included in the listings. Commonly used in food appliactions.
- Temperature Range: -70 Deg C to +200 Deg C.
- Good dialectric properties and resistance to ozone and oxygen attack.
- Retains flexibility at high and low temperatures.
- Poor strength and tear resistance.
- Poor resistance to oils, fuels, concentrated acids and alkalis, water and steam.
Product Data
- Inside Diameter (ID)
:
23.39
mm
(Equiv. 0.921 in.) - Section (t)
3.53
mm
(Equiv. 0.139 in.) - Colour Red
- Hardness Duro 70
- Material Silicone Rubber
Product Compliance and Data
Additional Resources
Cross References
- 1283N85
- BS213SIL70
- BS213-SIL70
- BS213SIL70RED
- BS213-SIL70-RED
