Miniature Bearings Australia
NMI-0220-0390-0170-O-2RS - Datasheet
MBA
Category Information

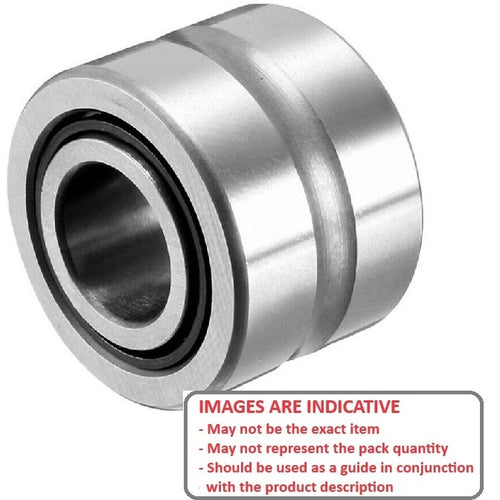

Bearings - Needle Roller with Inner Ring - MachinedMachined Needle Roller with Inner Ring Bearings. This is the main category in this series
- These needle roller bearings include the matching inner ring.
Product Data

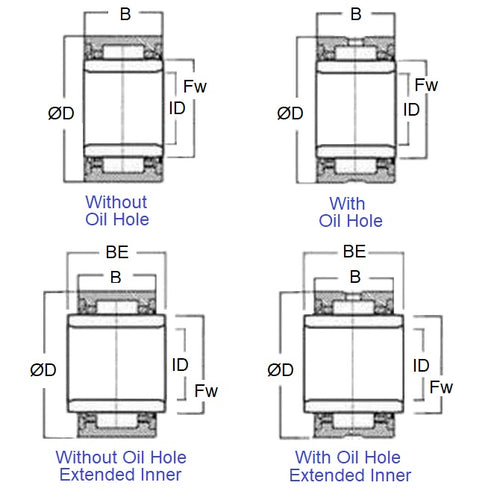

- ID (d)
:
22.000
mm
(Equiv. 0.866 in.) - OD (D)
39.000
mm
(Equiv. 1.535 in.) - Width (B)
17.000
mm
(Equiv. 0.669 in.) - Extended Inner (BE) 18.000 mm
- Seals Yes
- Basic Dynamic Load Rating 1870 KGF
- Basic Static Load Rating 2410 KGF
- Oil Hole Oil Hole
- Inner Ring OD (Fw) 28.000
- Material Chrome Steel
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- IKO NA49-22UU
- NA4922UU
