W0220-T-035-056-L-CZ - Datasheet
MBA
Category Information

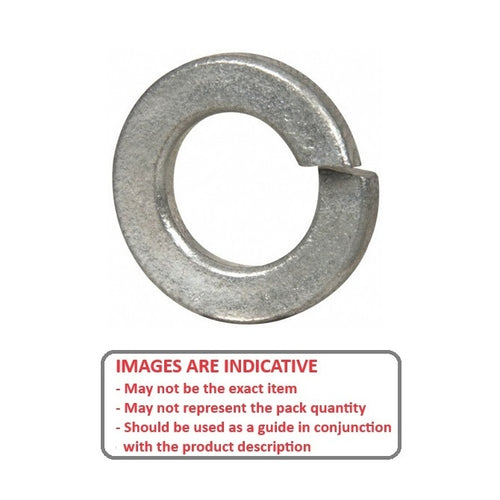

Washers - Lock - Split - SteelSteel Split Lock Washers. Split type. Plain and zinc plated steel selection.
- Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
- Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
- Dimensions are nominal and may vary between batches.
Product Data

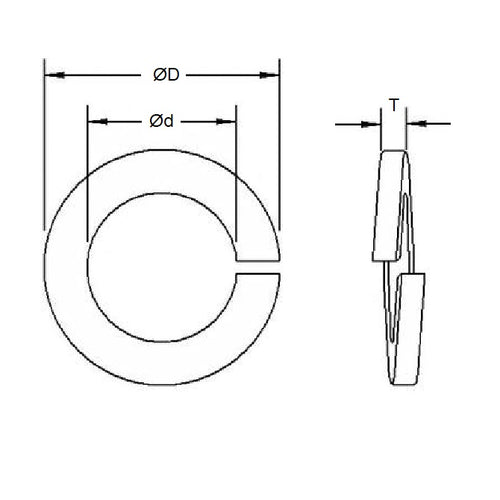

- Nominal Inside Diameter
:
22.00
mm
+ 1.0 / - 0.0
(Equiv. 0.866 in.) - Outside Diameter
35
mm
(Equiv. 1.378 in.) - Material Thickness (T)
5.60
mm
(Equiv. 0.22 in.) - Nominal Screw Size M22
- Specs ANSI B18.21.1
- Actual ID (Ref) 22.4 mm
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- WASCA 1000435
- WASCA WSPSZNP78
