IR-0220-0280-0205 - Datasheet

MBA

Category Information

Bearings - Needle Roller Inner Rings

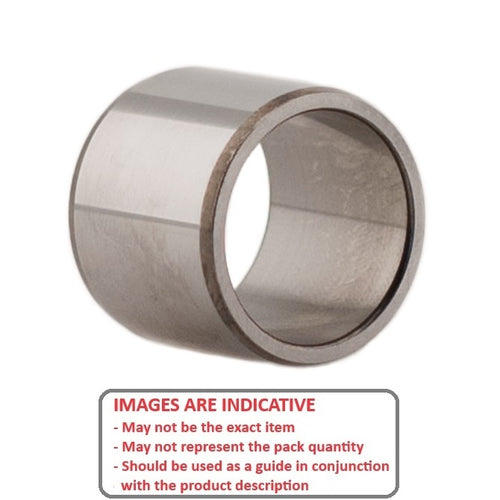

Needle Roller Inner Rings Bearings. Hardened sleeves for needle roller bearings.

  • Needle roller inner rings are high strength, high precision sleeves, that are used as a high quality surface on which a needle roller bearing can to run.
  • Pair them with a suitable needle roller where the bearing ID matches the inner ring OD.
  • They can be used to sleeve a worn shaft, or in applications where it is desirable to run the bearing on an easily replacebale surface.

Product Data

  • Inside Diameter : 22.000 mm
    (Equiv. 0.866 in.)
  • Outside Diameter 28.000 mm
    (Equiv. 1.102 in.)
  • Length (L) 20.500 mm
    (Equiv. 0.807 in.)
  • Material Chrome Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi IR22X28X20.5
  • Nachi IRT-2220-1
  • IKO IRT2220-1
  • Misumi IRT2220-1
  • IRT22201
