CCI-02200N-C - Datasheet
MBA
Category Information

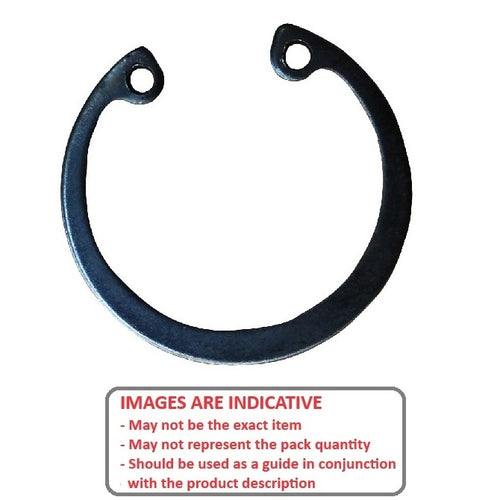

Retaining Rings - Internal - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
- Tolerances on request.
Product Data
- Housing Bore (B)
:
22.00
mm
(Equiv. 0.866 in.) - Clip Thickness (T)
1.00
mm
+/- 0.075
(Equiv. 0.039 in.) - Groove Dia. (Dg)
23.00
mm
+ 0.00 / - 0.06
(Equiv. 0.906 in.) - Approx. Loose Circlip OD (Dr) 23.50 mm + 0.38 / - 0.25
- Groove Width (W) 1.17 mm + 0.08 / - 0.00
- Clearance in Bore (C) 13.20 mm
- Clearance in Groove (C1) 14.60 mm
- Min. Lug Diameter (h) 2.00 mm
- Min. Extension (n) 1.50
- Standard MIL-16625
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor HO-086
- D1300-0220APP
- D13000220APP
- HO086
- N13000086
- N1300-0086
