SNB-220-238-C - Datasheet
MBA
Category Information

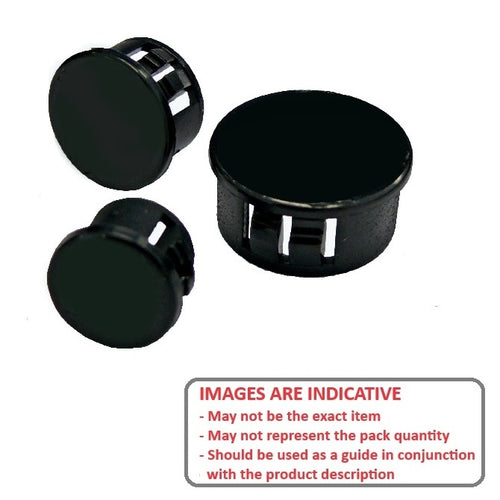

Bushings - Snap - ClosedClosed Snap Bushings. Quality UL approved 6/6 nylon with flammabilty rating of 94V-2. Open snap bushings are designed to provide protection from sharp edges where cable or hose runs through plate steel.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
- Similar to a bung, but designed with expanding catch for use in holes in sheet products
- Also see grommets for a similar product made from rubber
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

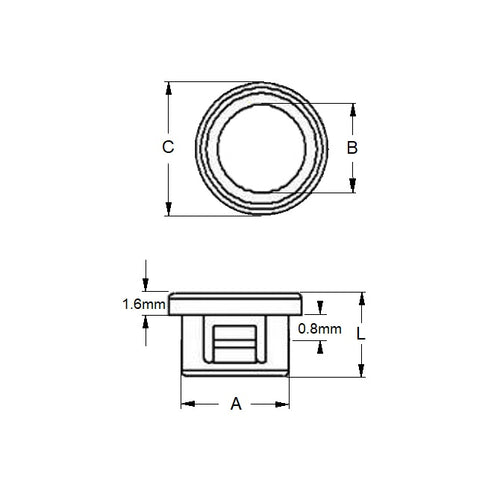

- Plate Hole Diameter (A)
:
22
mm
(Equiv. 0.866 in.) - Outside Diameter (C)
23.8
mm
(Equiv. 0.937 in.) - Centre Hole Size (B) 11.5
- Quantity Per Card 3
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- KT KTSBC22S
