P-080G-022-120FF-SB-N-127 - Datasheet

MBA

Category Information

Pulleys - Metric Timing - 8.000mm Pitch - GT - 12mm Wide - Through Bore

Through Bore 12mm Wide GT 8.000mm Pitch Metric Timing Pulleys. Timing Pulleys to suit HTD 8.000mm Pitch Timing Belts. Suits belts 12.0mm wide. Pilot bored. Use with GT2 or GT3 type belts.

  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
  • Black oxide coated steel
  • No locking

Product Data

  • Number of Teeth : 22
  • Max Belt Width 12.00 mm
    (Equiv. 0.472 in.)
  • Bore (d) 12.700
  • Bore Type Finished
  • Locking Type None

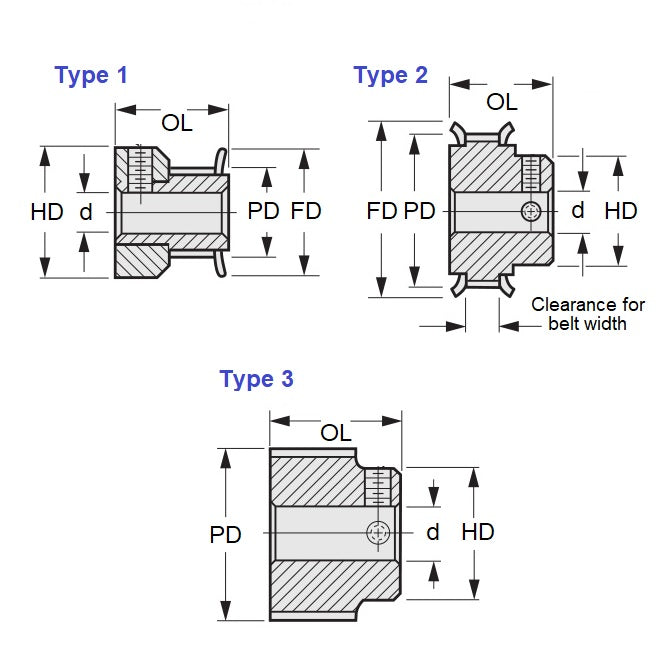

  • Type 2
  • Pitch Dia. (PD) 56.00 mm
  • Flange Diameter (FD) 65.0 mm
  • Overall Length 33.2 mm
  • Hub Diameter (HD) 44.9
  • Material Steel - Black Oxide
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Gates 22-8MX12-6FS6
  • 228MX126FS6
