BV10-02286-3VX900 - Datasheet
MBA
Category Information

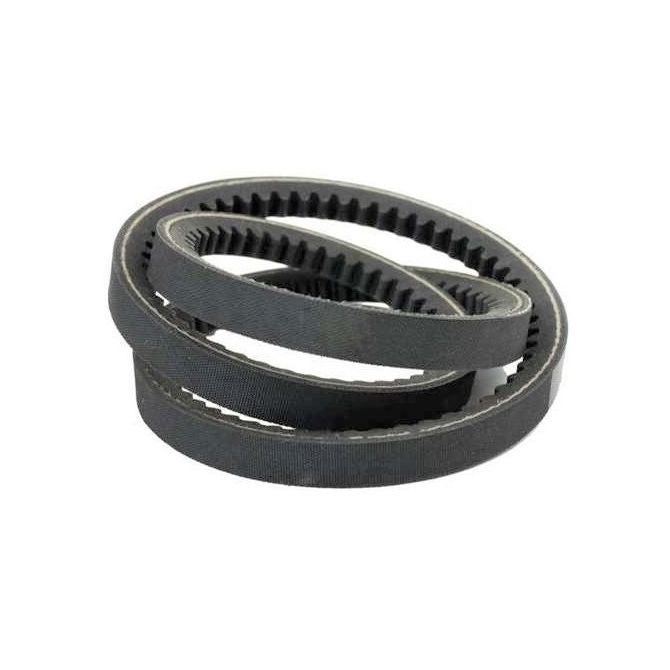

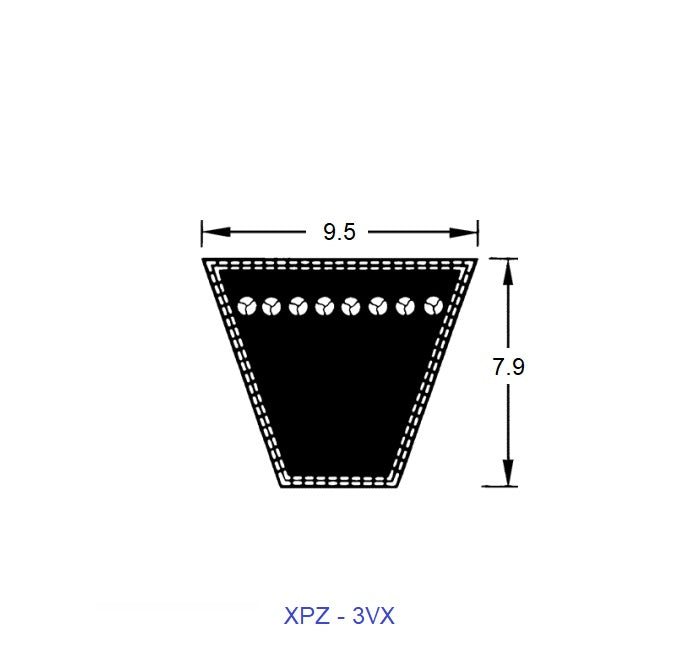

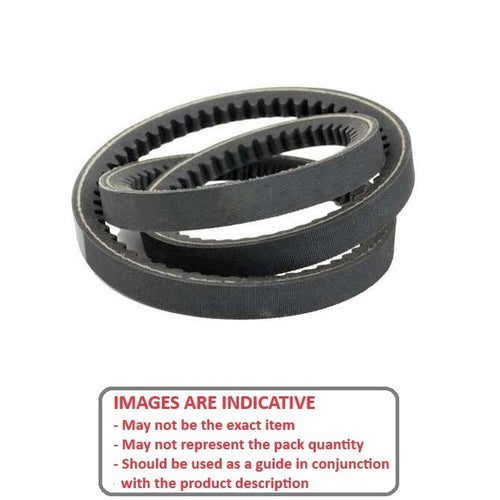

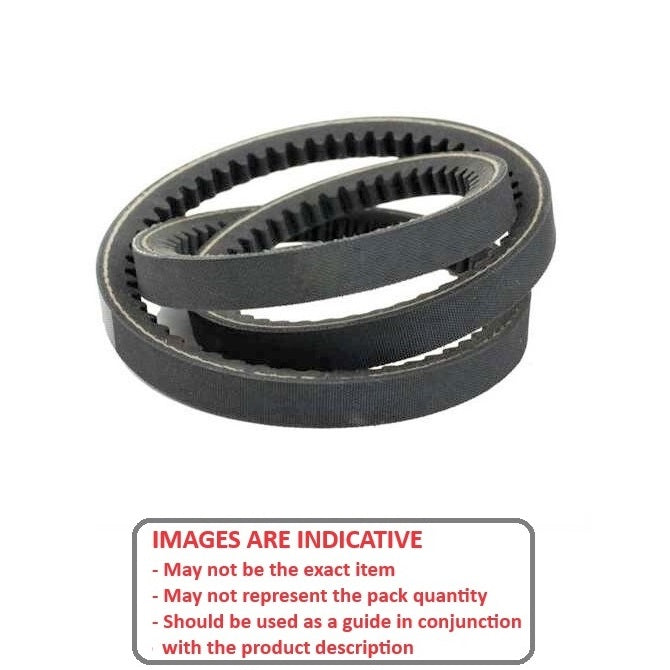

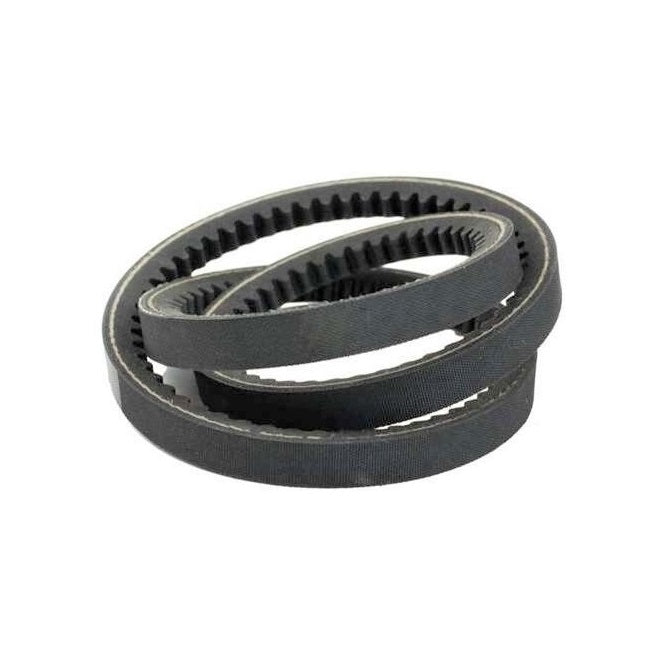

Belts - Wedge - 9.5 x 7.9mm - Notched XPZ 3VXNotched XPZ 3VX 9.5 x 7.9mm Wedge Belts. Miniature and small belts. 9.5mm Top Width x 7.9mm Height.
- Wedge belt are specialized V-belt designed with a more compact, wedge-shaped profile to transmit higher power in smaller, space-constrained drive systems.
- Designed to offer greater load-carrying capacity and efficiency compared to standard V-belts, Ideal for demanding applications like automotive engines, compressors, and industrial machinery.
- Also known as a narrow V-belt
- Sizes are nominal and may vary slightly.
Product Data
- Pitch Length
:
2286
mm
(Equiv. 90 in.) - Type Standard - Wedge Belt
- Re-Inforcement Polyester
- Material Natural Rubber - Fabric Jacket
Product Compliance and Data
Additional Resources
Cross References
- BTQ3VX900
- BTQ-3VX900
