MSF-120M-CGC-048 - Datasheet
MBA
Category Information

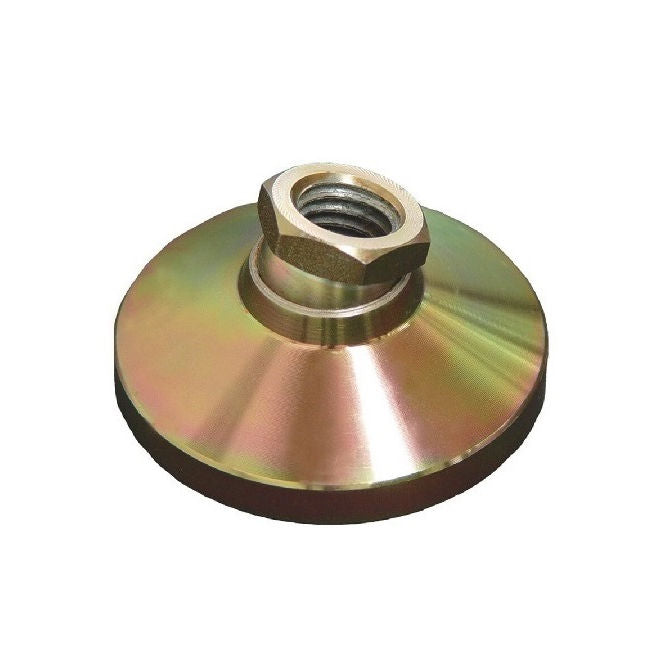

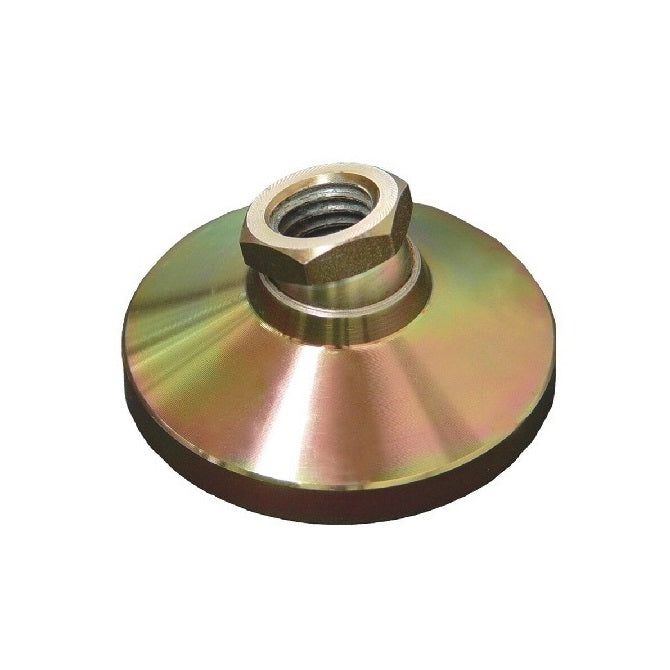

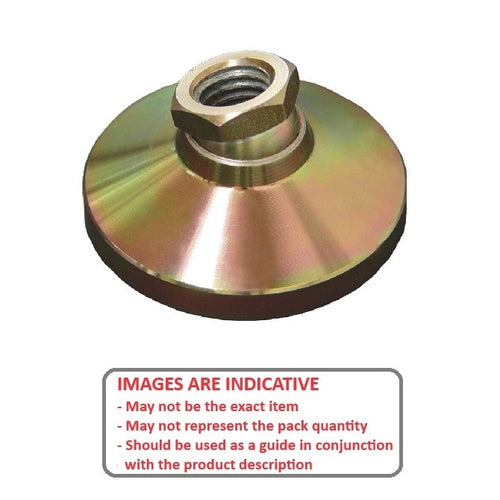

Mounts - Levelling Socket - Swivel - Standard - Gold ChromateGold Chromate Standard Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M12 (12x1.75mm)
- Base Diameter (D)
48.0
mm
(Equiv. 1.89 in.) - Foot Height (C)
29.0
mm
(Equiv. 1.142 in.) - Min. Thread Depth 11.2 mm
- Base Height (E) 6.00 mm
- Load Rating 2270 Kg
- Steel
- Finish Gold Chromate
- Hex Flats (B) 19.00 mm
- Material Gold Chromate
Product Compliance and Data
Additional Resources
Cross References
- MSF2270M12G
- MLP10
- MLP-10
