MSM-120M-051-CGC - Datasheet
MBA
Category Information

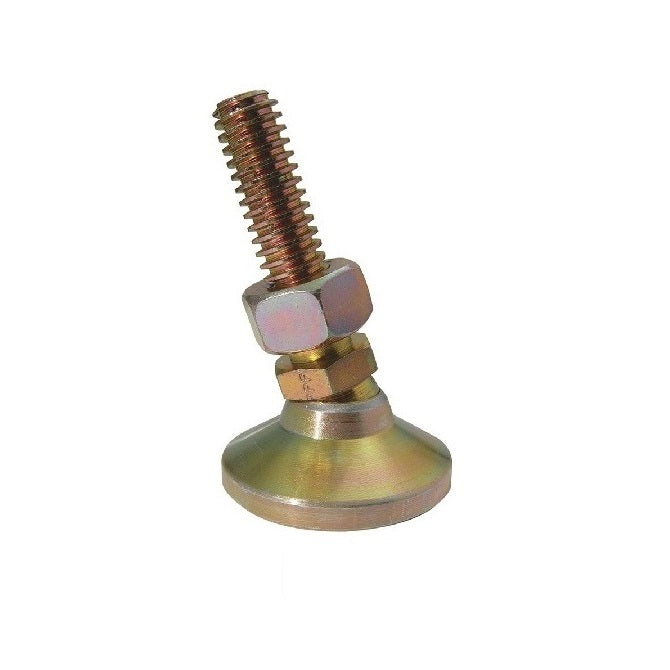

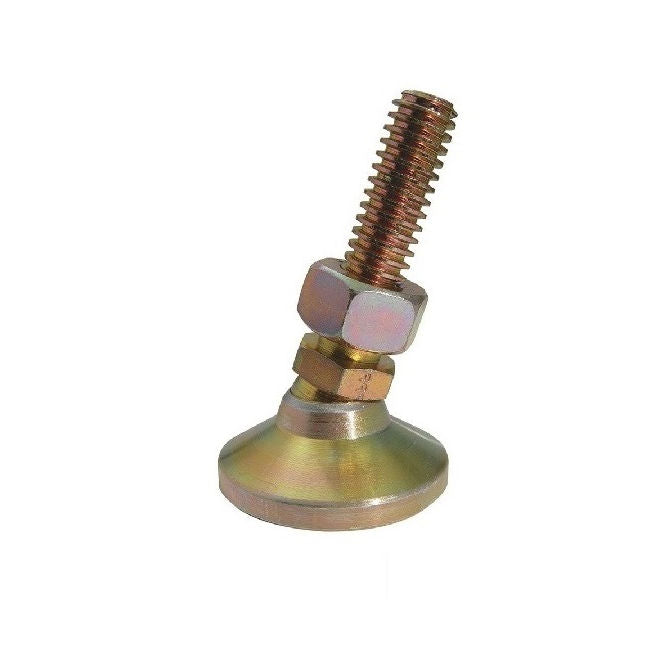

Mounts - Levelling Studded - Swivel - Standard - Gold ChromateGold Chromate Standard Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M12 (12x1.75mm)
- Base Diameter (D)
48.0
mm
(Equiv. 1.89 in.) - Foot Height (C)
29.0
mm
(Equiv. 1.142 in.) - Thread Length (F) 51.0 mm
- Base Height (E) 6.00 mm
- Overall Height 80.0 mm
- Load Rating 2270 Kg
- Finish Gold Chromate
- Hex Flats (B) 19.000 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MSM2270M12G
- MLP55
- MLP-55
