MSF-127C-S3 - Datasheet
MBA
Category Information

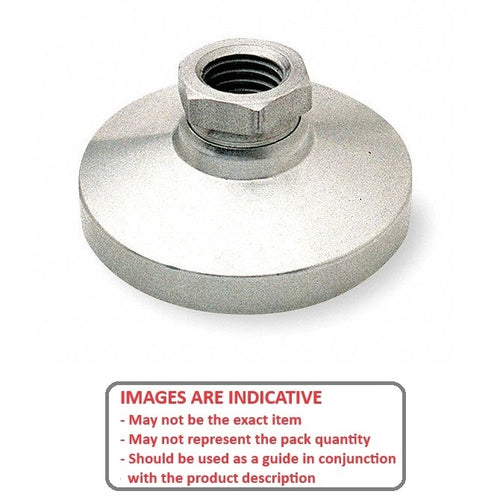

Mounts - Levelling Socket - Swivel - 303 Stainless - StandardStandard 303 Stainless Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 1/2-13 UNC (12.7mm)
- Base Diameter (D)
47.6
mm
(Equiv. 1.874 in.) - Foot Height (C)
28.6
mm
(Equiv. 1.126 in.) - Min. Thread Depth 11.2 mm
- Base Height (E) 6.35 mm
- Load Rating 2270 Kg
- 303 Stainless
- Hex Flats (B) 19.05 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- 6103K62
- MSF2270127CS3
- L-1SS
- L1SS
