MSF-127C-CGC-048 - Datasheet
MBA
Category Information

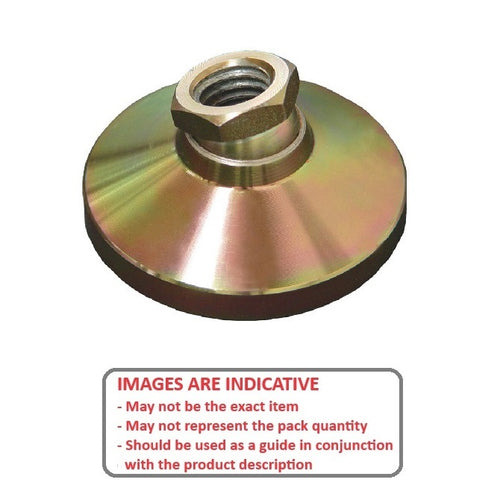

Mounts - Levelling Socket - Swivel - Standard - Gold ChromateGold Chromate Standard Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 1/2-13 UNC (12.7mm)
- Base Diameter (D) 47.6 mm
- Foot Height (C) 28.6 mm
- Min. Thread Depth 11.2 mm
- Base Height (E) 6.35 mm
- Load Rating 2270 Kg
- Steel
- Finish Gold Chromate
- Hex Flats (B) 19.05 mm
- Material Gold Chromate
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® L-1
- L1
- MSF2270127CG
