MLF-127C-S6 - Datasheet
MBA
Category Information

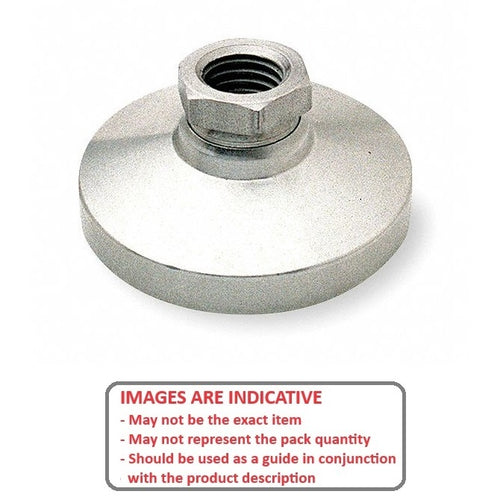

Mounts - Levelling Socket - Standard - 316 Stainless316 Stainless Standard Levelling Socket Mounts. Levelling adjusters. For levelling machine tools, electronic racks, benches etc on uneven surfaces.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 1/2-13 UNC (12.7mm)
- Base Diameter (D)
47.6
mm
(Equiv. 1.874 in.) - Foot Height (C)
28.6
mm
(Equiv. 1.126 in.) - Min. Thread Depth 11.2 mm
- Base Height (E) 6.35 mm
- Load Rating 2270 Kg
- Hex Flats (B) 19.05 mm
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
Cross References
- 6103K154
- MLF2270127CS6
- HVL1SS
- HVL-1SS
- LSS1
- LSS-1
