MSM-127C-102-CCC - Datasheet
MBA
Category Information

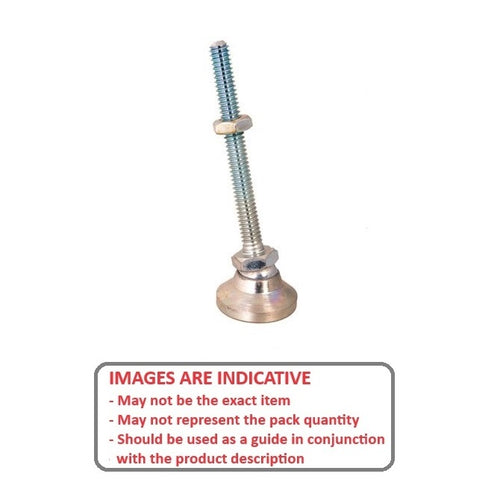

Mounts - Levelling Studded - Swivel - Clear Chromate - StandardStandard Clear Chromate Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 1/2-13 UNC (12.7mm)
- Base Diameter (D)
47.6
mm
(Equiv. 1.874 in.) - Foot Height (C)
28.6
mm
(Equiv. 1.126 in.) - Thread Length (F) 101.6 mm
- Base Height (E) 6.35 mm
- Overall Height 130.2 mm
- Load Rating 2270 Kg
- Finish Clear Chromate
- Hex Flats (B) 19.050 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 6111K33
- MSM2270127CLCC
- TLS25
- TLS-25
