MSM-127C-051-S3 - Datasheet
MBA
Category Information

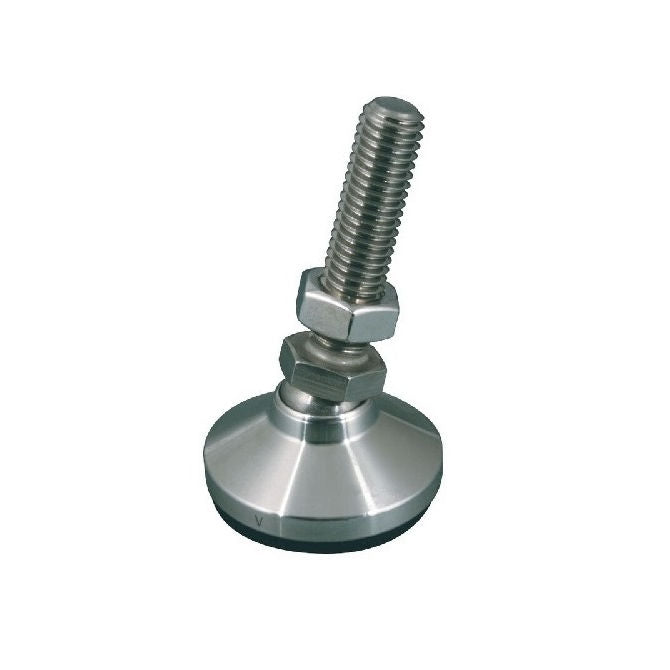

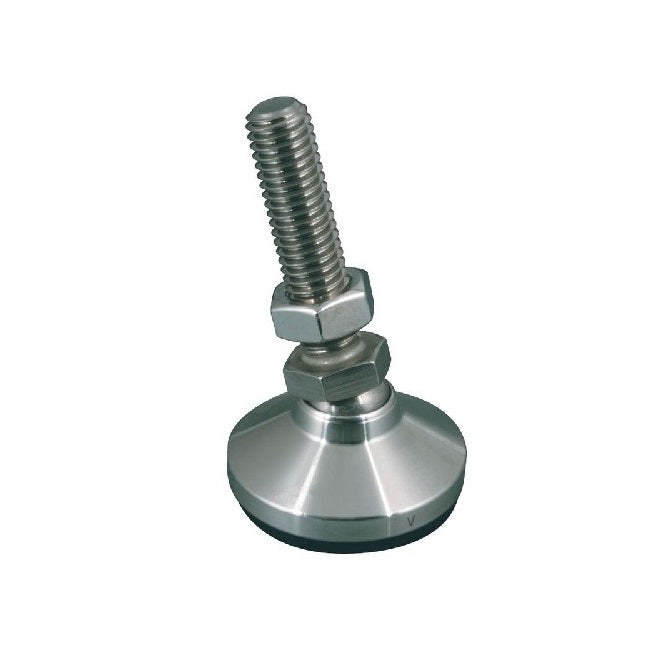

Mounts - Levelling Studded - Swivel - 303 Stainless - StandardStandard 303 Stainless Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data

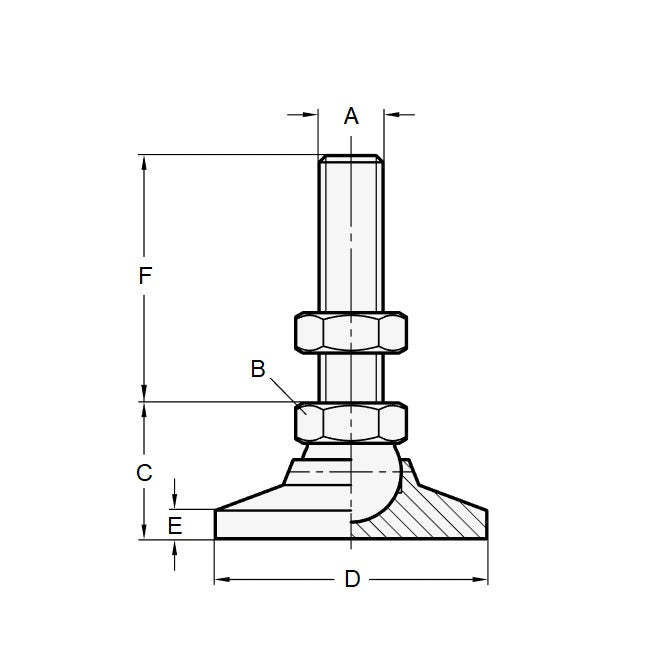

- Thread Size (A) : 1/2-13 UNC (12.7mm)
- Base Diameter (D)
47.6
mm
(Equiv. 1.874 in.) - Foot Height (C)
28.6
mm
(Equiv. 1.126 in.) - Thread Length (F) 50.8 mm
- Base Height (E) 6.35 mm
- Overall Height 79.4 mm
- Load Rating 2270 Kg
- Hex Flats (B) 19.050 mm
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 6111K62
- MSM2270127CS3
- TL-2SS
- TL2SS
