Miniature Bearings Australia
MAV-227-01-102-3 - Datasheet
MBA
Category Information

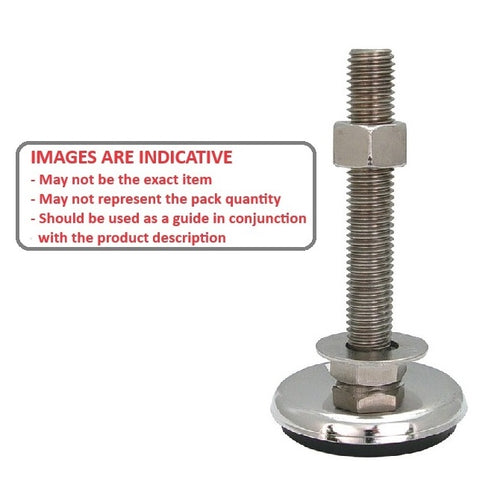

Mounts - Anti-Vibration - 303 Stainless Steel303 Stainless Steel Anti-Vibration Mounts. Corrosion resistant designed with high grade nitrile rubber and stainless steel.
- Swivel movement plus or minus 7o for stable support on inclined floors.
- Nitrile rubber base helps ensure stability.
Product Data
- Load Capacity : 226.8 Kg
- Thread 1/2-13 UNC (12.7mm)
- Thread Length
101.6
mm

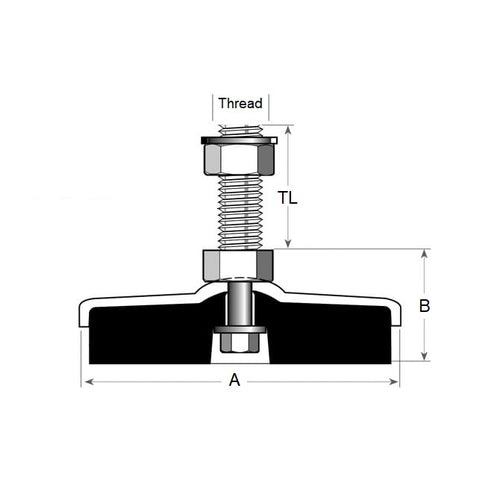

(Equiv. 4 in.) - A Dia. 67.1 mm
- B base Ht. 16.0 mm
- Material Stainless Steel 303 PV (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- 6221K11
- RY-620
- RY620
