MPL-0227-P - Datasheet

MBA

Category Information

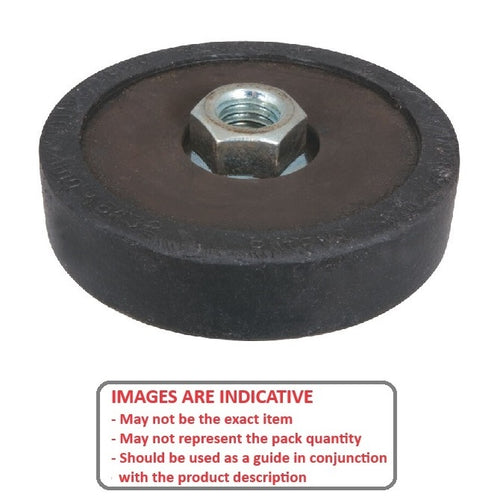

Mounts - Pivotal Levellers - Base Without Stud

Base Without Stud Pivotal Levellers Mounts. Tough bonded neoprene. Patented pivotal leveler keeps equipment level and dampens an average 85% of noise. Adjusters.

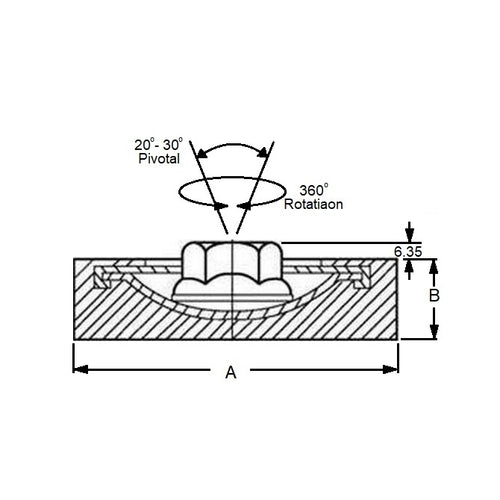

  • The mounting nut which holds the stud is molded into the pad in a steel bracket and rotates freely permitting at least 6.35mm of leveling.
  • No stud included so you can use your own custom stud.

Product Data

  • Max Load : 226.8 Kg
  • Base Diameter (A) 76.200 mm
    (Equiv. 3 in.)
  • Base Height (B) 19.050 mm
    (Equiv. 0.75 in.)
  • Thread Size 1/2-13 UNC (12.70mm)
  • Type Round
  • Material Neoprene Rubber
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 63965K62
  • TPL-530
  • TPL530
