G018B-022-M08-030-040-AB-G - Datasheet
MBA
Category Information

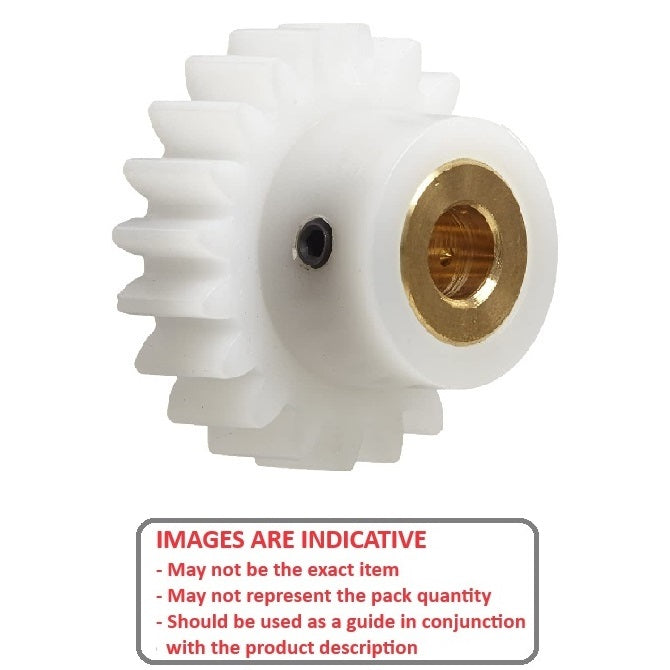

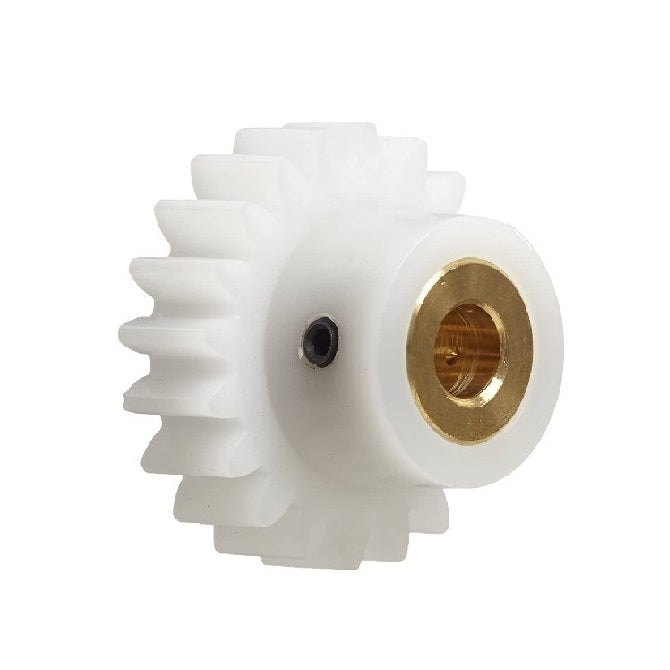

Gears - Spur - Hubbed - Module 0.8 - Plastic - With InsertWith Insert Plastic Module 0.8 Hubbed Spur Gears. PCD in mm = No. of Teeth x 0.8. 20 Degree Pressure Angle.
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 0.8mm per tooth
- Module 0.8. Approximately 2.51mm between the teeth.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 22
- Pitch Circle Diameter (PD)
17.60
mm
(Equiv. 0.693 in.) - Bore (d)
4.000
mm
(Equiv. 0.157 in.) - Outside Diameter (OD) 19.20 mm
- Face Width (FW) 3.00 mm
- Type Hubbed
- 13.00
- 6.50
- Locking Method Set Screw
- Quality Brass Insert
- Material Acetal
Product Compliance and Data
Additional Resources
Cross References
- G018B22M08030040ABG
